Building Software Tools for Systems Neuroscience

INCF/OCNS Software WG

Adam Tyson

About us

Neuroinformatics Unit

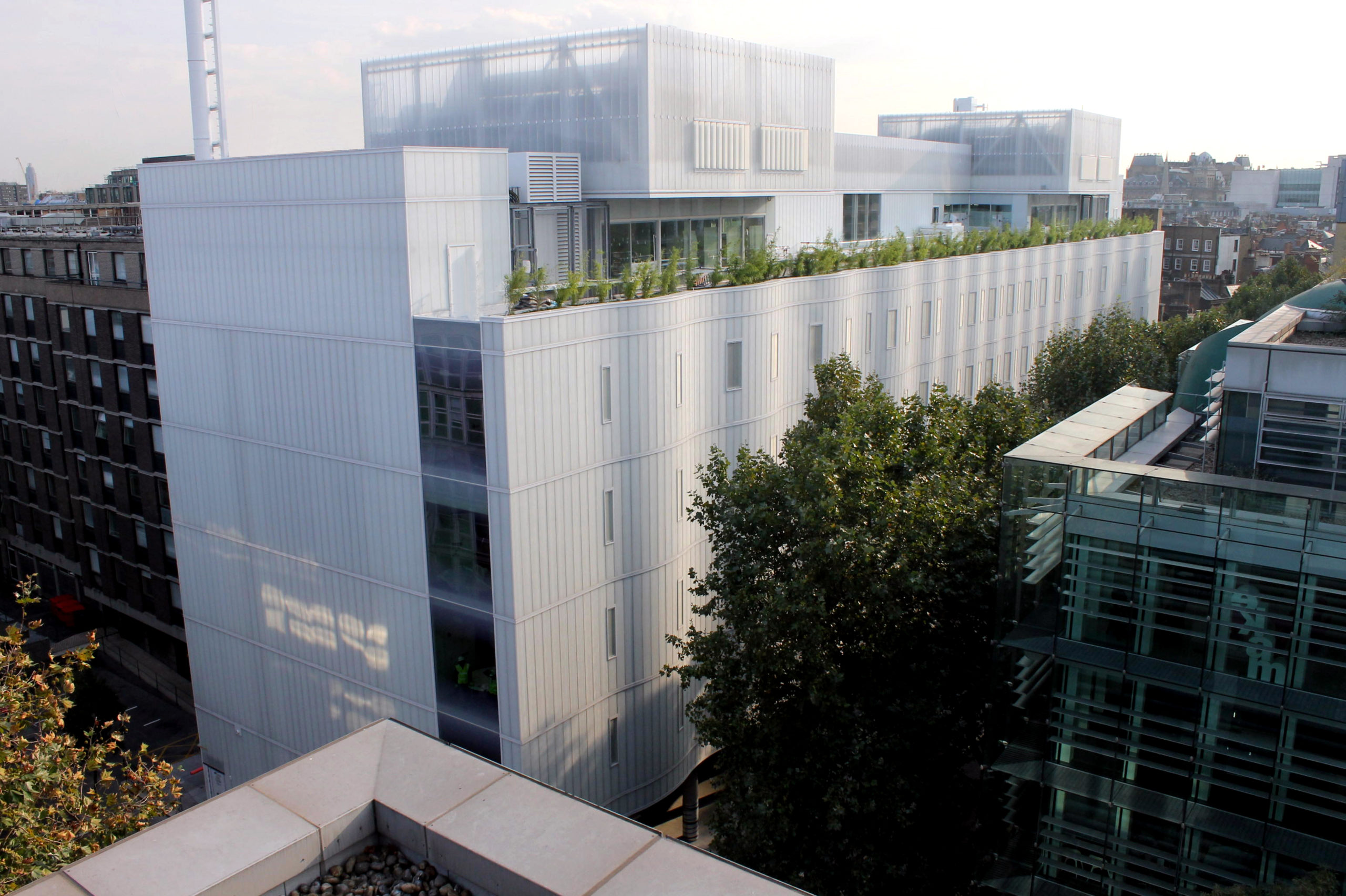

• Sainsbury Wellcome Centre & Gatsby Computational Neuroscience Unit, UCL (London)

Neuroinformatics Unit

• Sainsbury Wellcome Centre & Gatsby Computational Neuroscience Unit, UCL (London)

• (Systems) neuroscience & machine learning research software engineering group

What we do

• Data analysis software (anatomy, electrophysiology, functional imaging, behaviour)
• Data management (specifications, tools)
• Collaborations (data science, software development, productionisation)

Current projects

• Data standardisation and management
• Developer tools
• Modelling
• Extracellular electrophysiology analysis
• Video behavioural analysis
• Multiphoton analysis
• Computational neuroanatomy

Current projects

• Data standardisation and management
• Developer tools
• Modelling
• Extracellular electrophysiology analysis
• Video behavioural analysis
• Multiphoton analysis
• Computational neuroanatomy

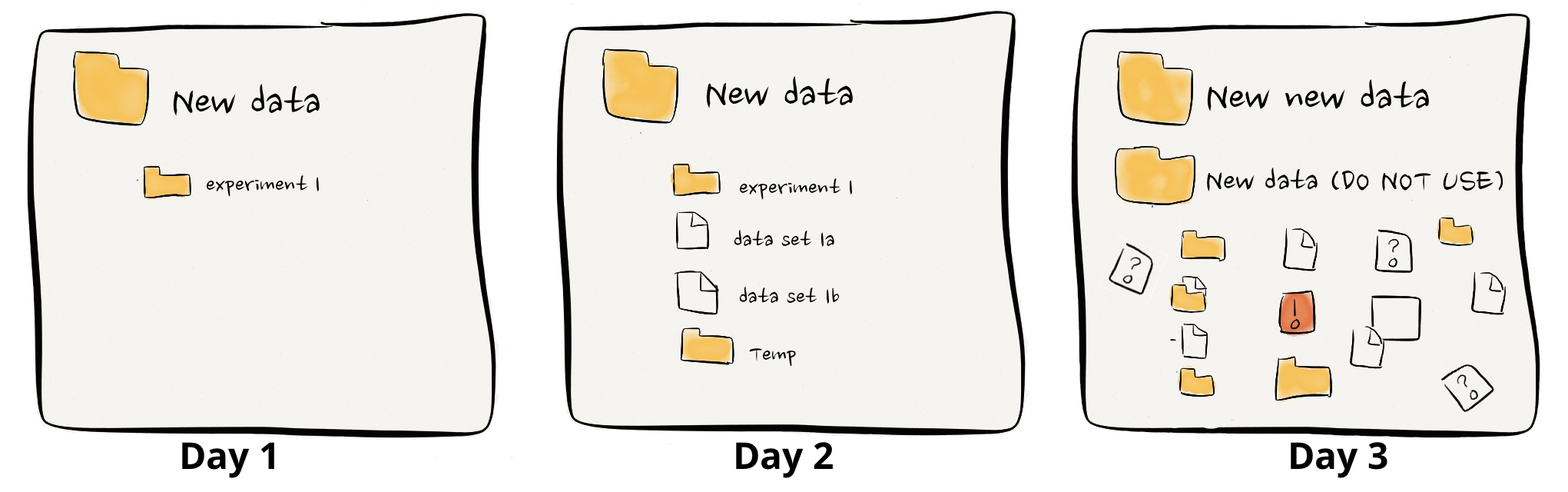

Data management

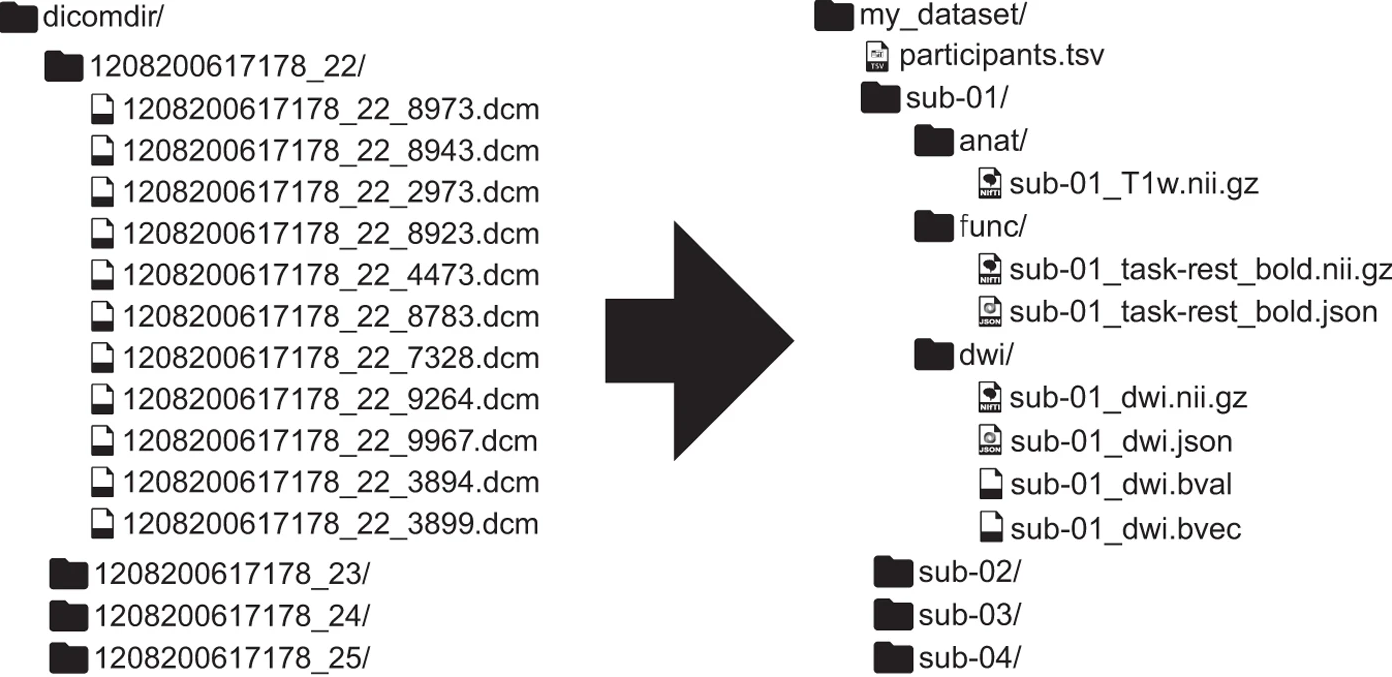

Data standards as a solution

Bridging the gap

A simpler standard

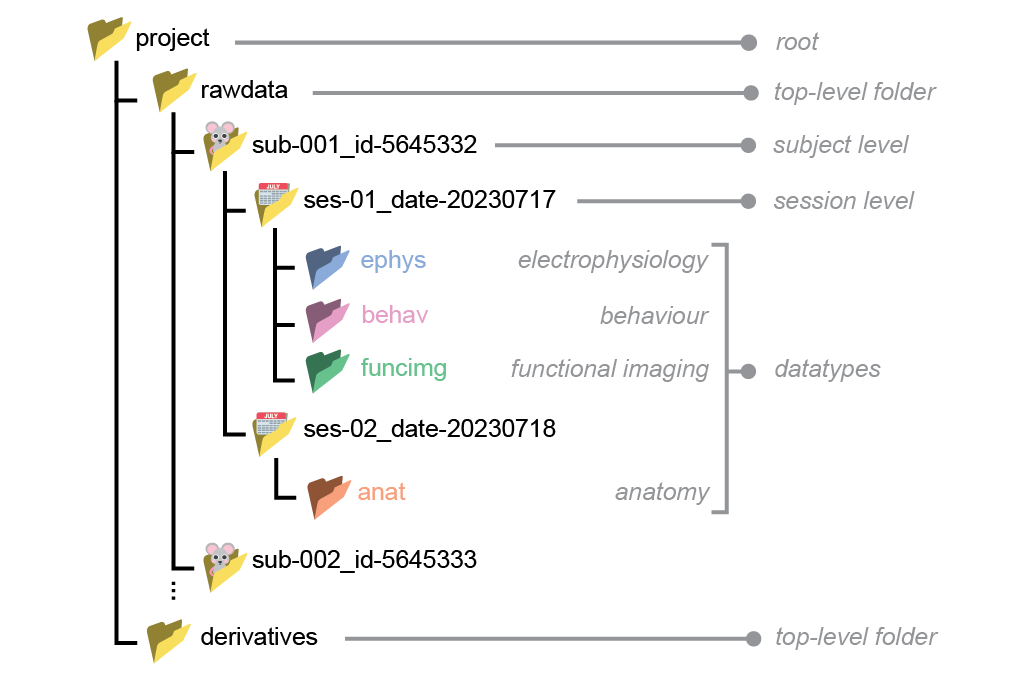

NeuroBlueprint

• Inspired by BIDS
• Lightweight data specification for (systems) neuroscience
• Maximise benefits of standardisation
• Minimise burden

Aiding adoption

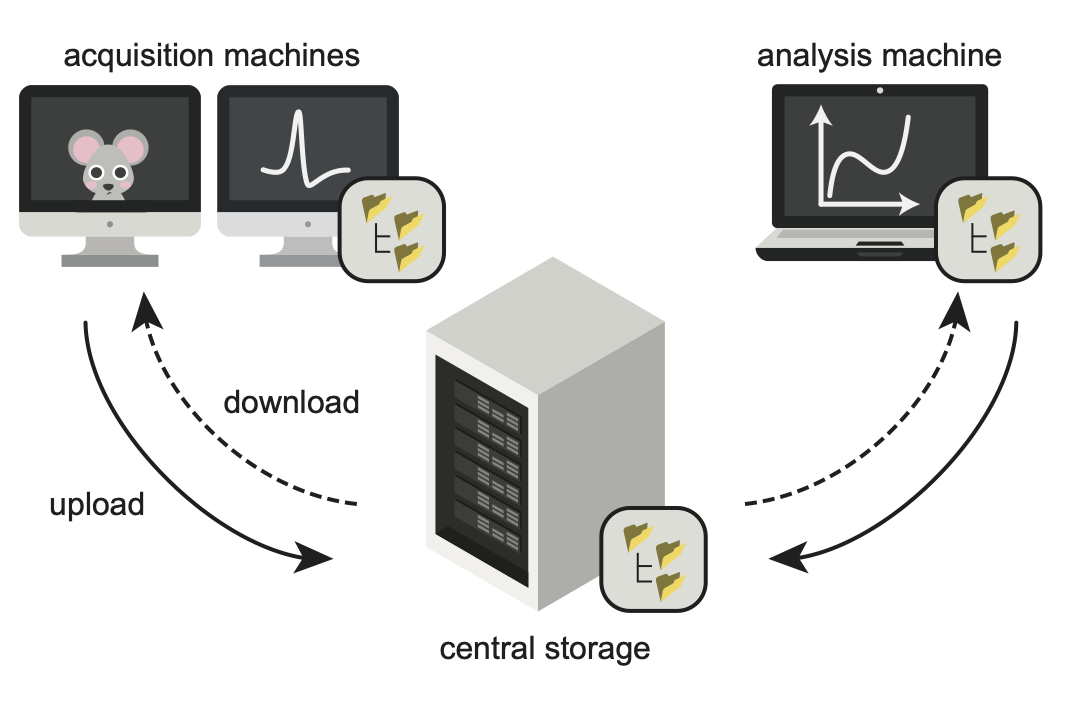

datashuttle

Python API

from datashuttle import DataShuttle

project = DataShuttle("my_first_project")
project.make_config_file(
    local_path=r"C:\Users\Joe\data\local\my_first_project",
    central_path=r"C:\Users\Joe\data\central\my_first_project",
    connection_method="local_filesystem",
)
project.create_folders(
    top_level_folder="rawdata",
    sub_names="sub-001",
    ses_names="ses-001_@DATE@",
    datatype=["behav", "ephys"]
)

project.upload_entire_project()

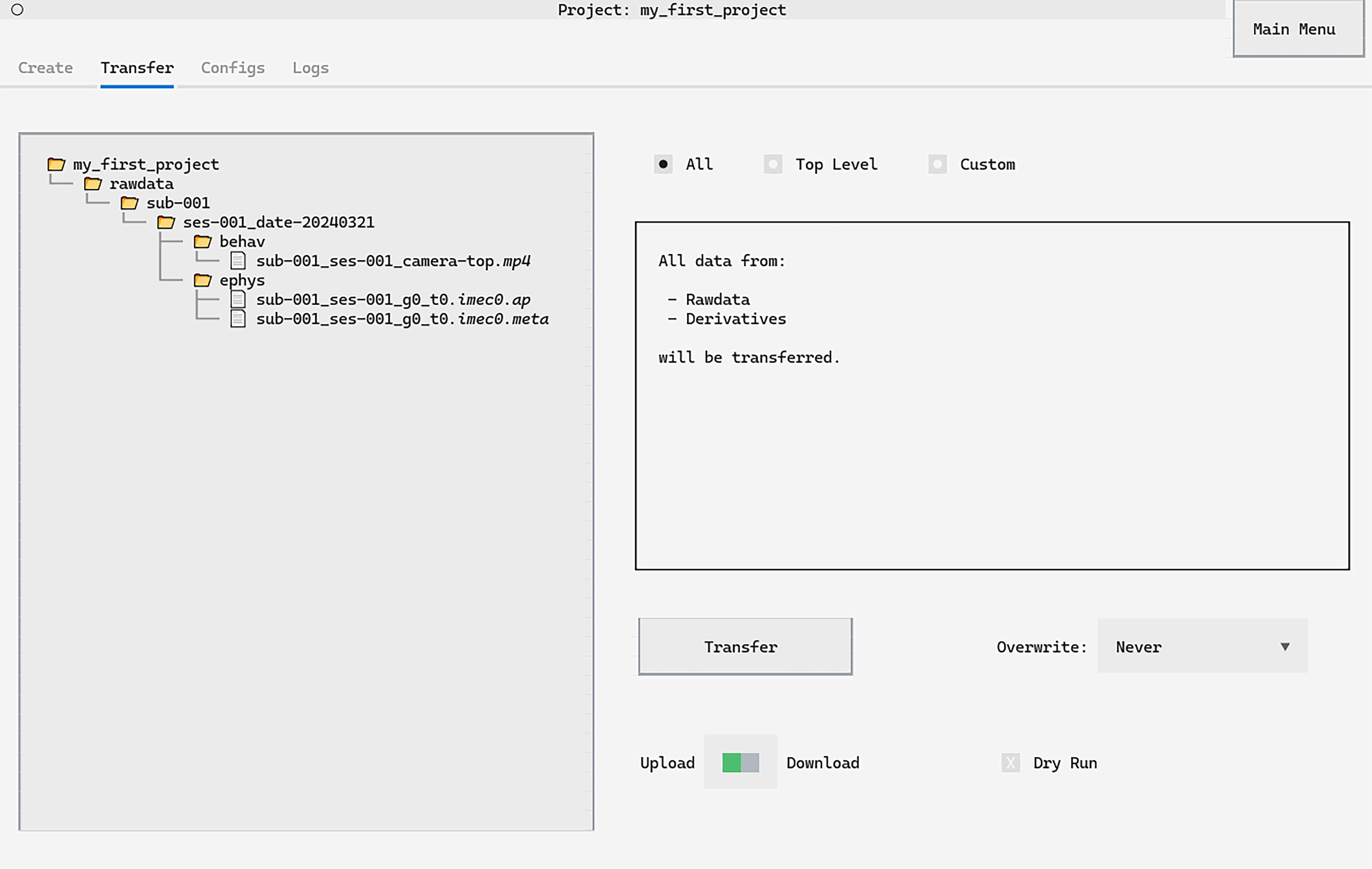

Terminal user interface

Future

• Standardise metadata

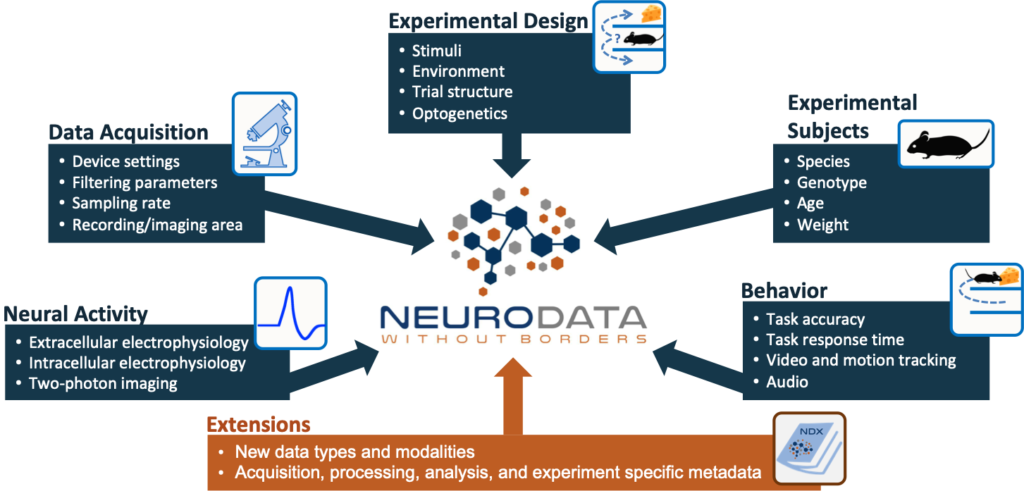

• Export to NWB
• Converge with BIDS 2.0
• Eventually not be recquired!

Behavioural analysis

Quantifying behaviour: ethogram

Time after start (min)	Foraging	Eating	Grooming
0:30	0	0	1
1:00	0	0	1
1:30	1	0	0
2:00	0	1	0

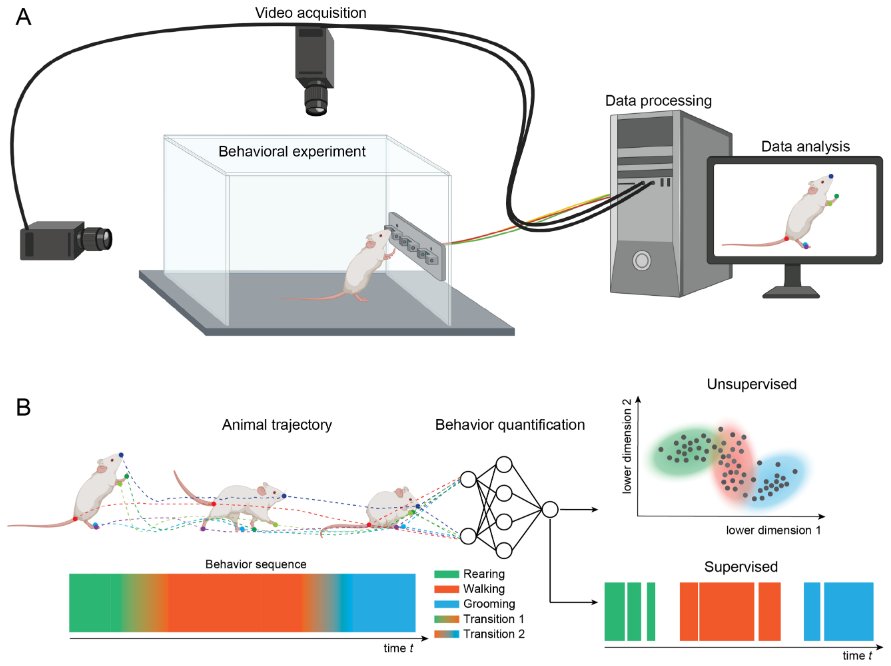

Quantifying behaviour: modern

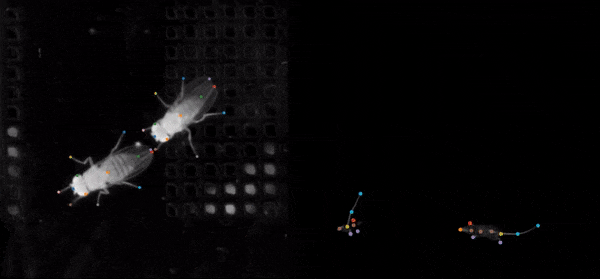

Pose estimation

source: sleap.ai

Many others: DeepLabCut, LightningPose, DeepPoseKit, Anipose, …

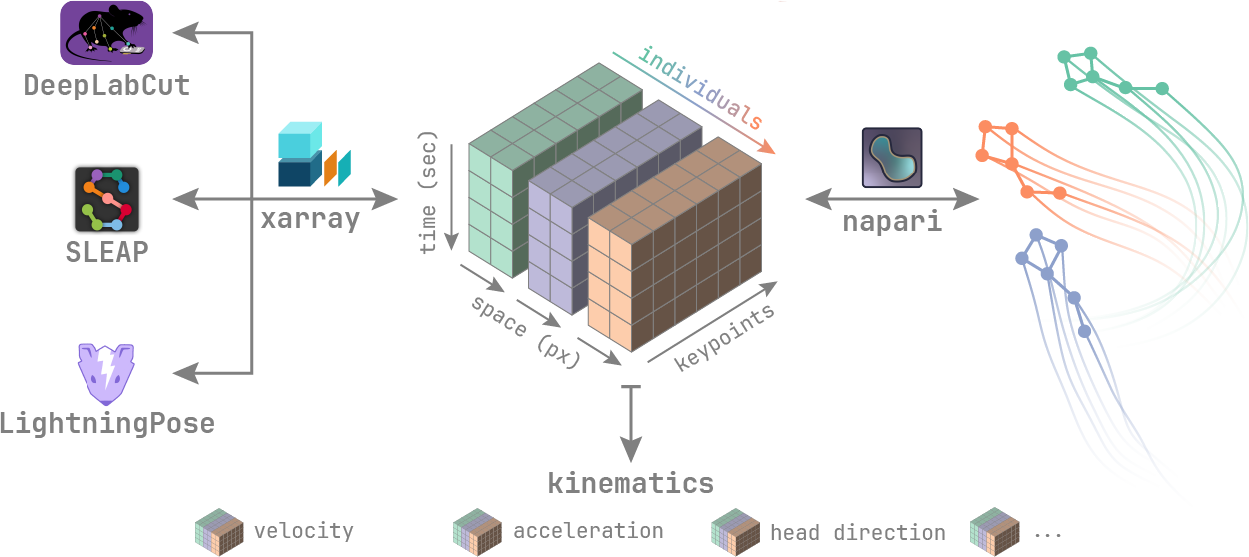

Python API

from movement.io import load_poses, save_poses
from movement.filtering import filter_by_confidence, interpolate_over_time
from movement.filtering import savgol_filter

ds = load_poses.from_file("/path/to/file.analysis.h5", source_software="SLEAP", fps=30)
ds = filter_by_confidence(ds, threshold=0.6)
ds = interpolate_over_time(ds, method="linear", max_gap=1)
ds = savgol_filter(ds, window_length=0.2, polyorder=2)

save_poses.to_lp_file(ds, "/path/to/file.csv")

displacement = ds.move.compute_displacement()
velocity = ds.move.compute_velocity()
accel = ds.move.compute_acceleration()

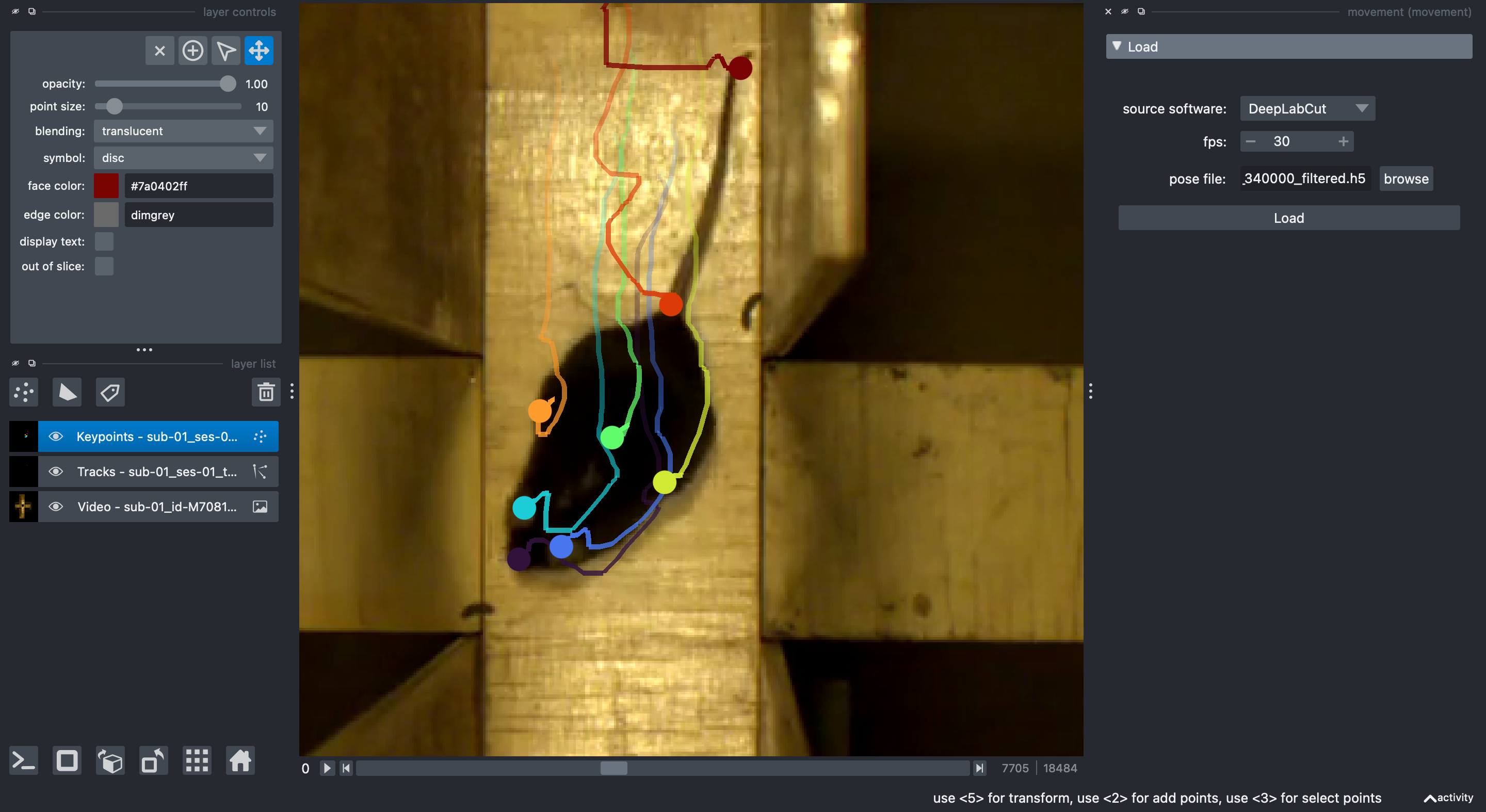

napari plugin

Future

• Support for more formats
• NWB export
• Support for all relevant kinematic variables
• Arbitrary regions of interest analysis
• Define and transform coordinate systems

Anatomy

BrainGlobe Initiative

Established 2020 with three aims:

1. Develop general-purpose tools to help others build interoperable software
2. Develop specialist software for specific analysis and visualisation needs
3. Reduce barriers of entry, and facilitate the building of an ecosystem of computational neuroanatomy tools.

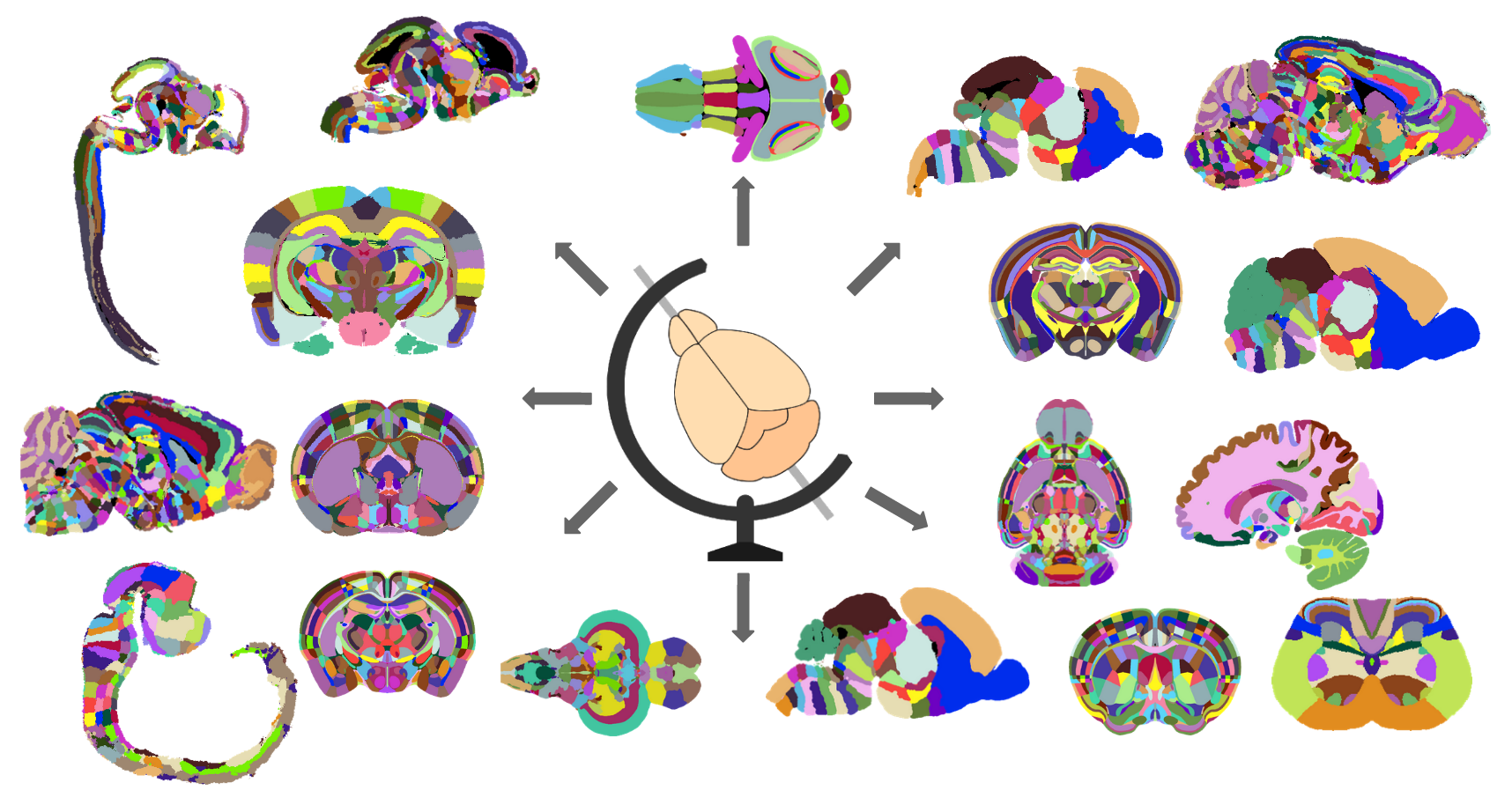

BrainGlobe Atlas API

brainglobe-atlasapi

Current atlases

• Allen Mouse Brain Atlas at 10, 25, 50 and 100 micron resolutions
• Allen Human Brain Atlas at 100 micron resolution
• Max Planck Zebrafish Brain Atlas at 1 micron resolution
• Enhanced and Unified Mouse Brain Atlas at 10, 25, 50 and 100 micron resolutions
• Smoothed version of the Kim et al. mouse reference atlas at 10, 25, 50 and 100 micron resolutions
• Gubra’s LSFM mouse brain atlas at 20 micron resolution
• 3D version of the Allen mouse spinal cord atlas at 20 x 10 x 10 micron resolution
• AZBA: A 3D Adult Zebrafish Brain Atlas at 4 micron resolution
• Waxholm Space atlas of the Sprague Dawley rat brain at 39 micron resolution
• 3D Edge-Aware Refined Atlases Derived from the Allen Developing Mouse Brain Atlases (E13, E15, E18, P4, P14, P28 & P56)
• Princeton Mouse Brain Atlas at 20 micron resolution
• Kim Lab Developmental CCF (P56) at 10 micron resolution with 8 reference images - STP, LSFM (iDISCO) and MRI (a0, adc, dwo, fa, MTR, T2)
• Blind Mexican Cavefish Brain Atlas at 2um resolution

BrainGlobe Atlas API

from brainglobe_atlasapi.bg_atlas import BrainGlobeAtlas
atlas = BrainGlobeAtlas("allen_mouse_25um")

reference_image = atlas.reference
print(reference_image.shape)
# (528, 320, 456)

annotation_image = atlas.annotation
print(annotation_image.shape)
# (528, 320, 456)

from pprint import pprint
VISp = atlas.structures["VISp"]
pprint(VISp)

# {'acronym': 'VISp',
#  'id': 385,
#  'mesh': None,
#  'mesh_filename': PosixPath('/home/user/.brainglobe/allen_mouse_25um_v0.3/meshes/385.obj'),
#  'name': 'Primary visual area',
#  'rgb_triplet': [8, 133, 140],
#  'structure_id_path': [997, 8, 567, 688, 695, 315, 669, 385]}

Version 1

Whole brain microscopy

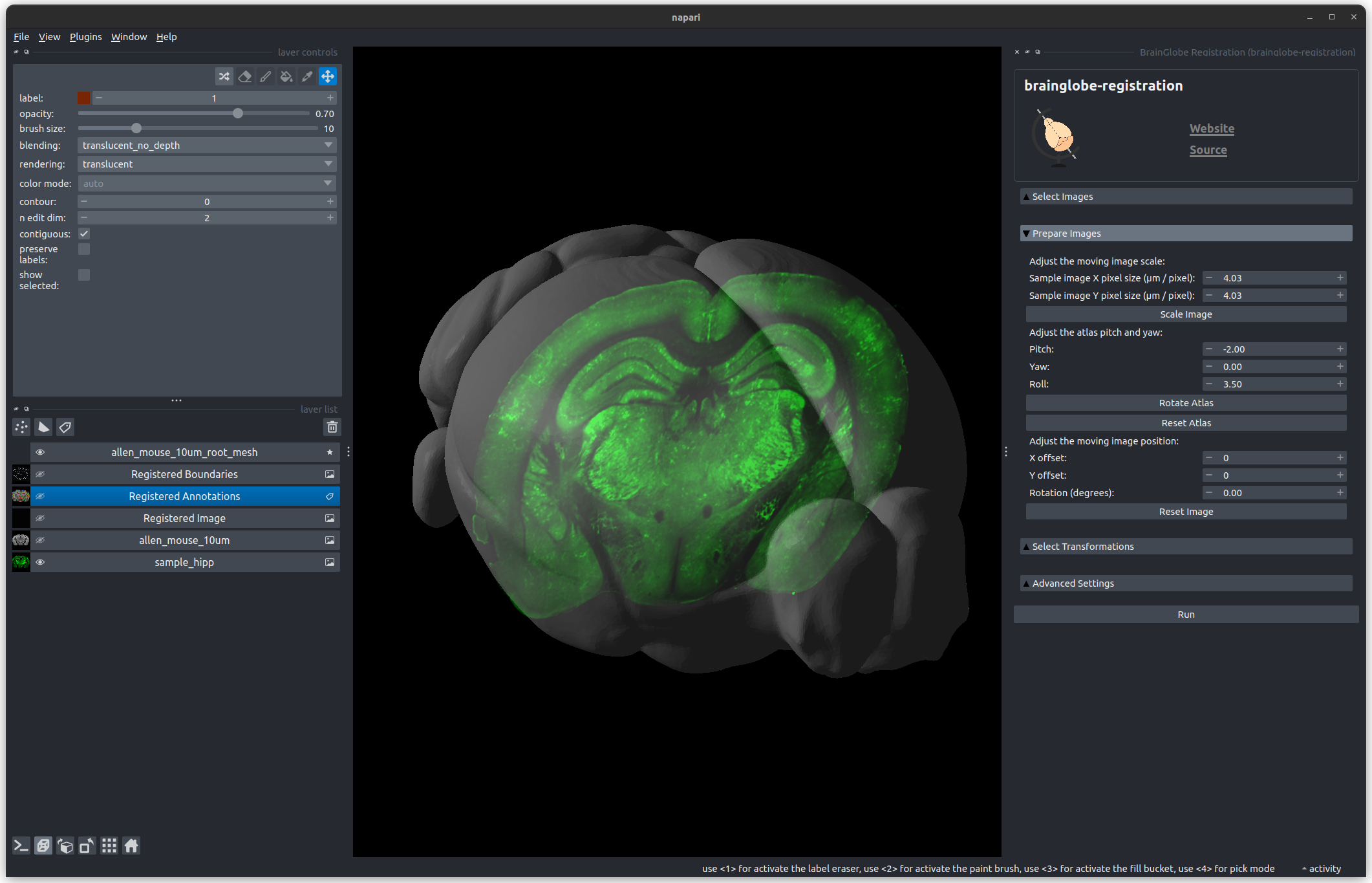

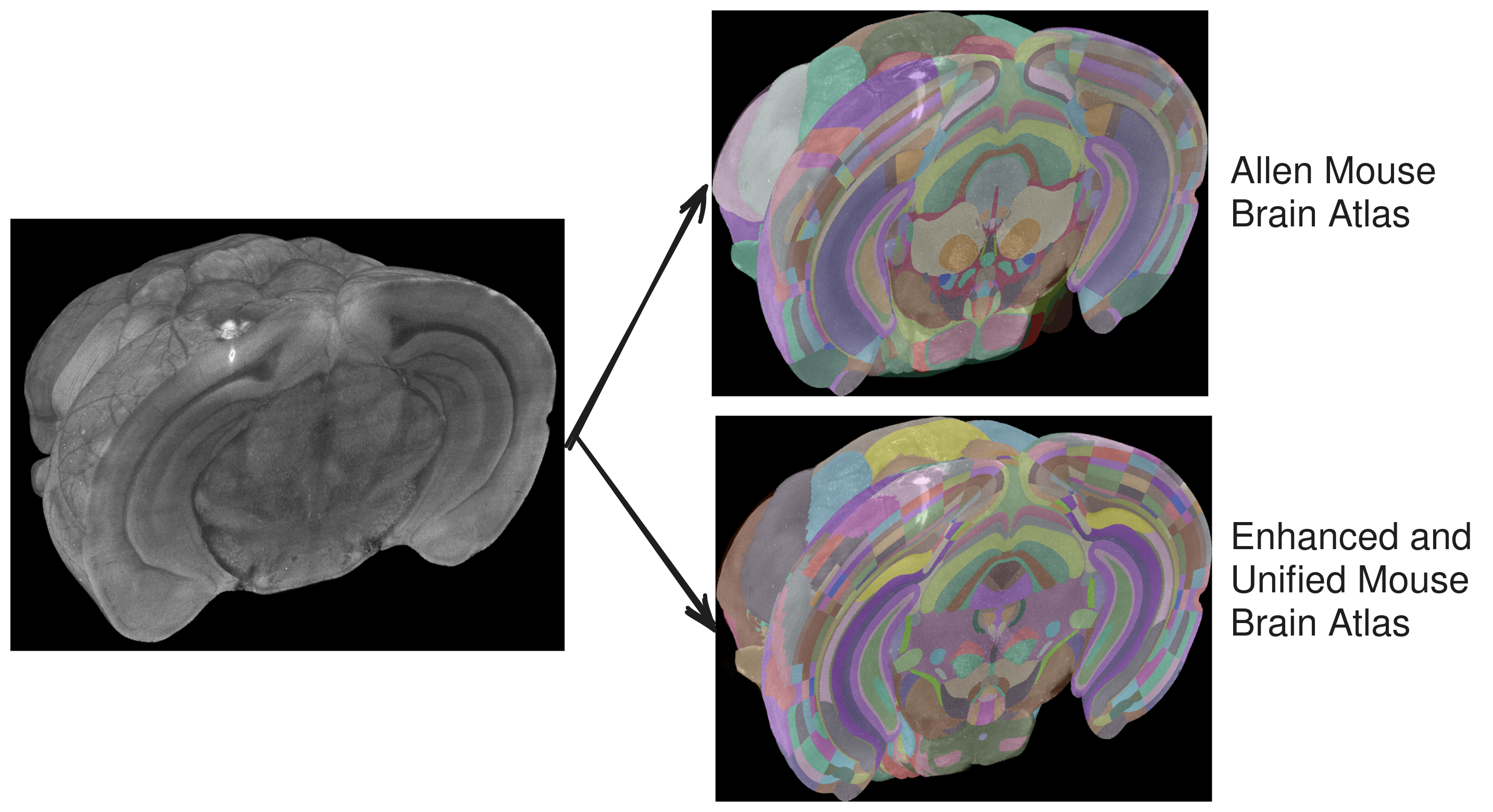

Whole-brain registration

brainreg

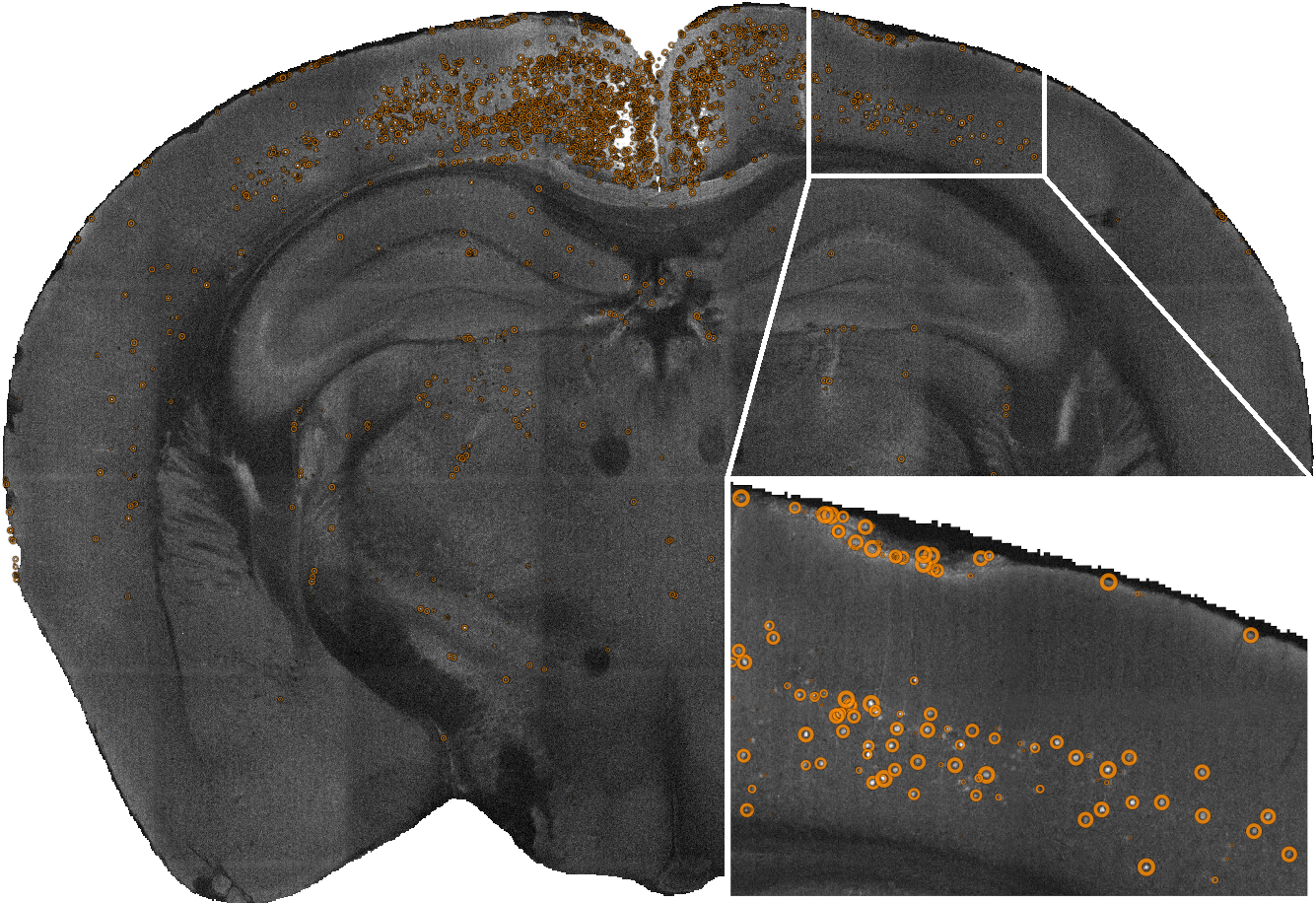

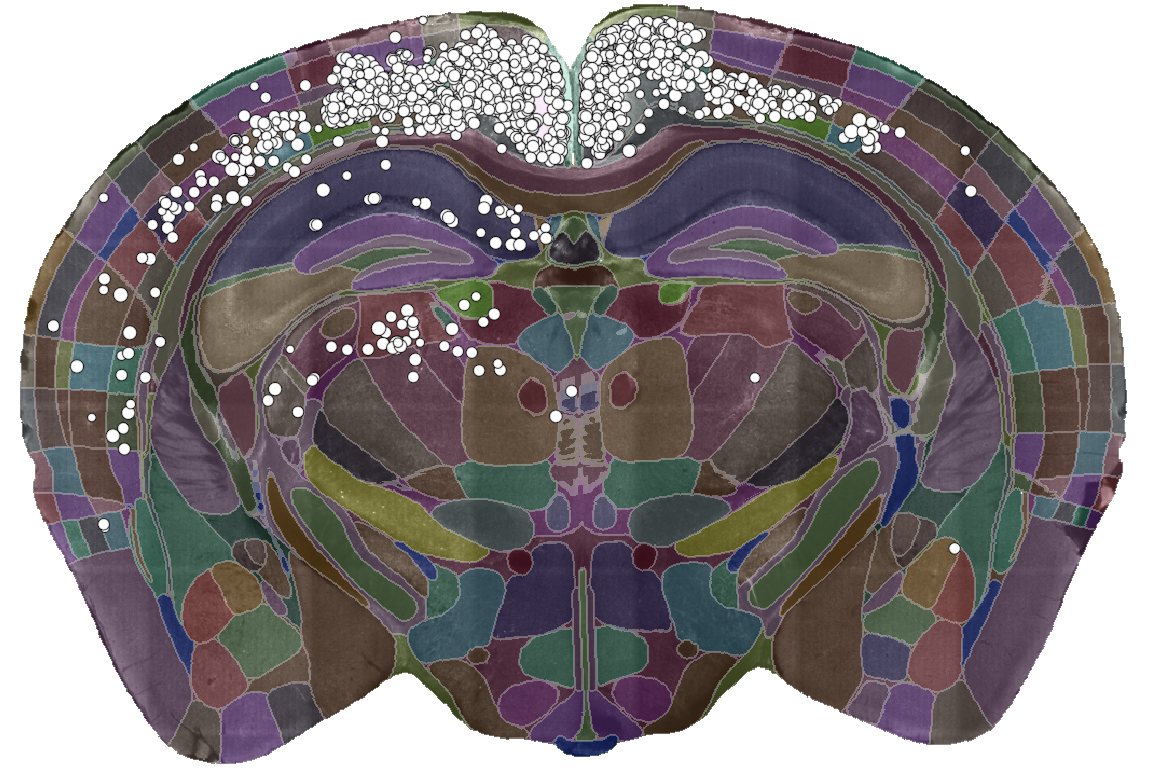

3D cell detection

cellfinder

3D cell detection

cellfinder

3D cell detection

cellfinder

3D cell detection

cellfinder

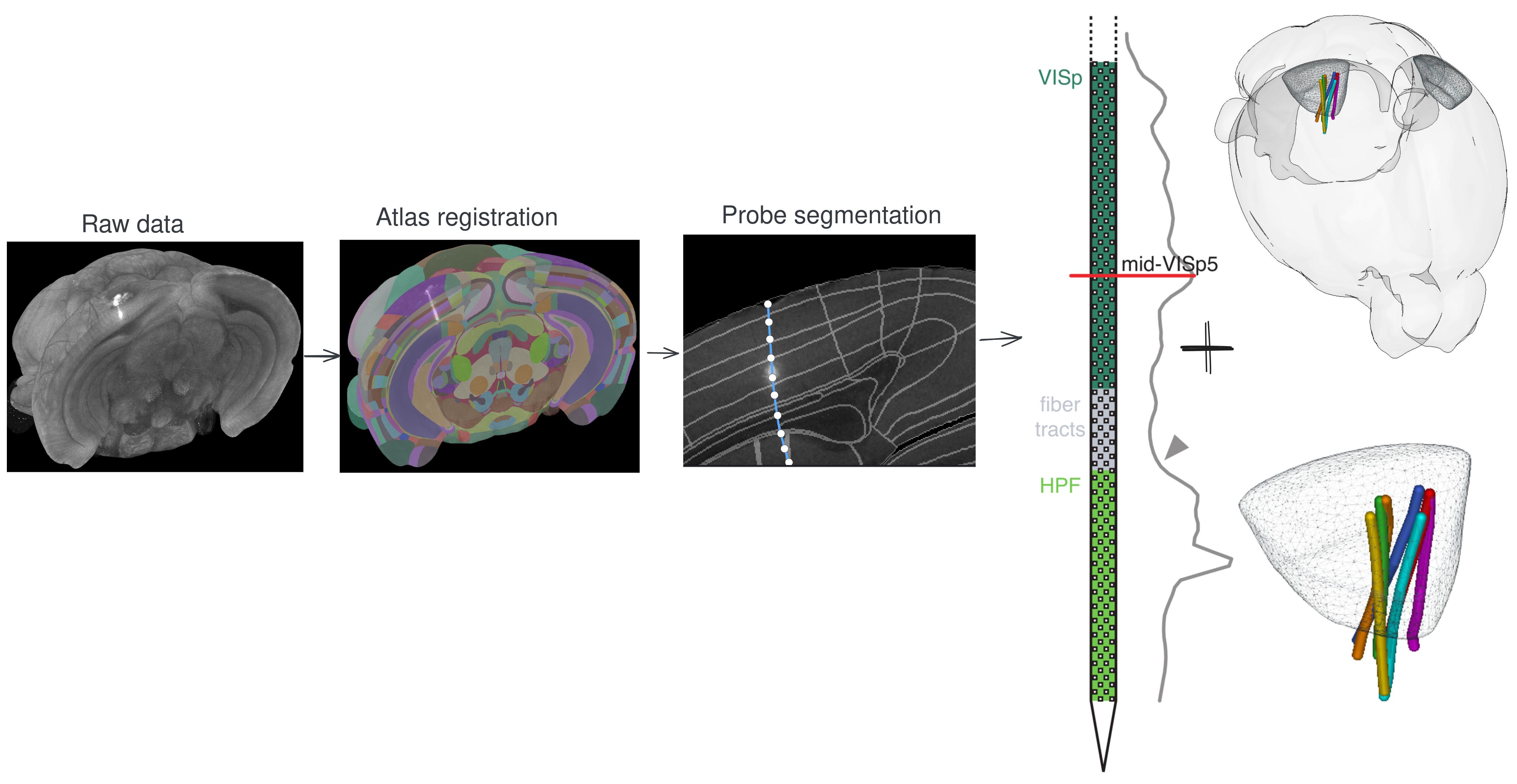

Spatial analysis

brainglobe-segmentation

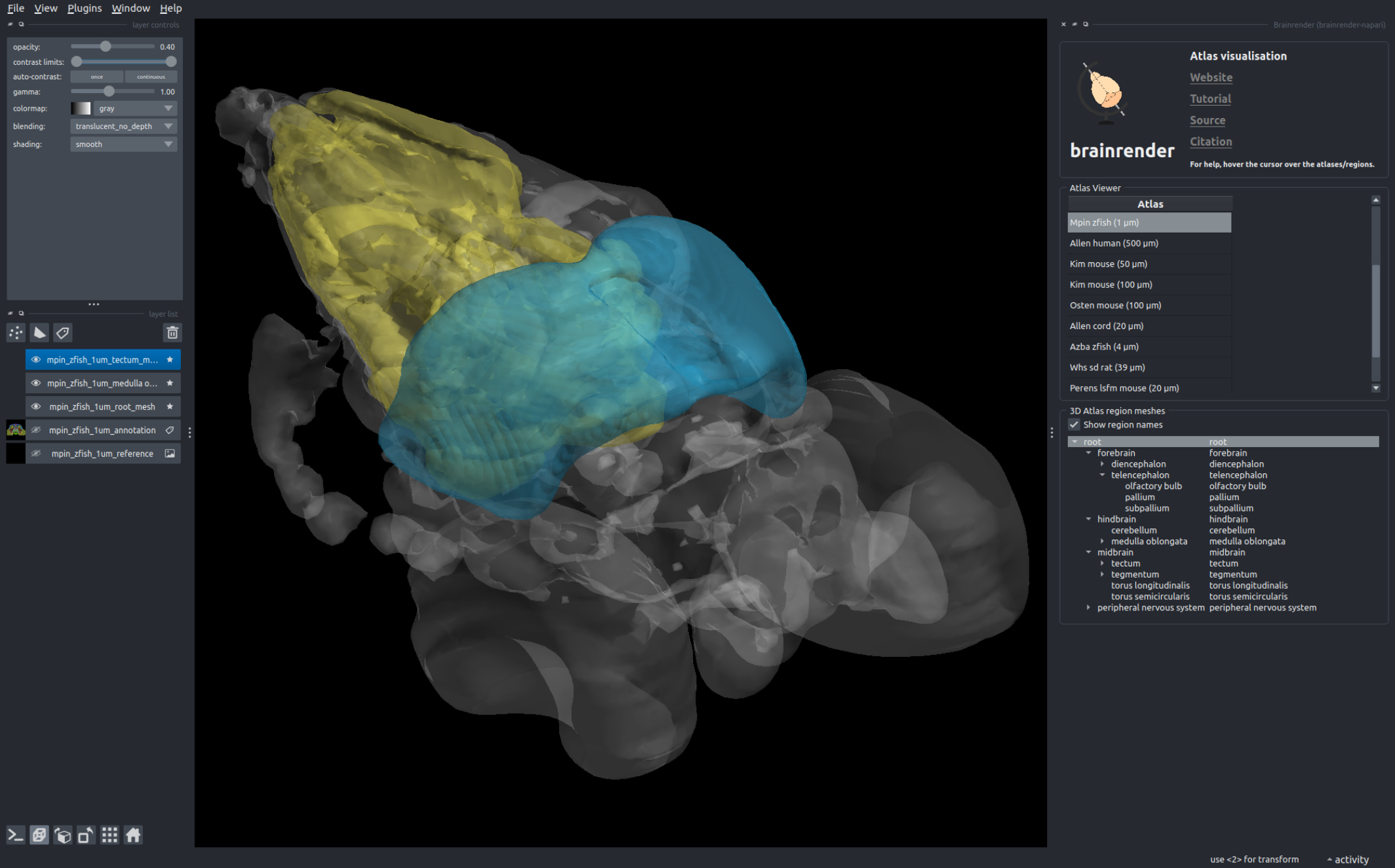

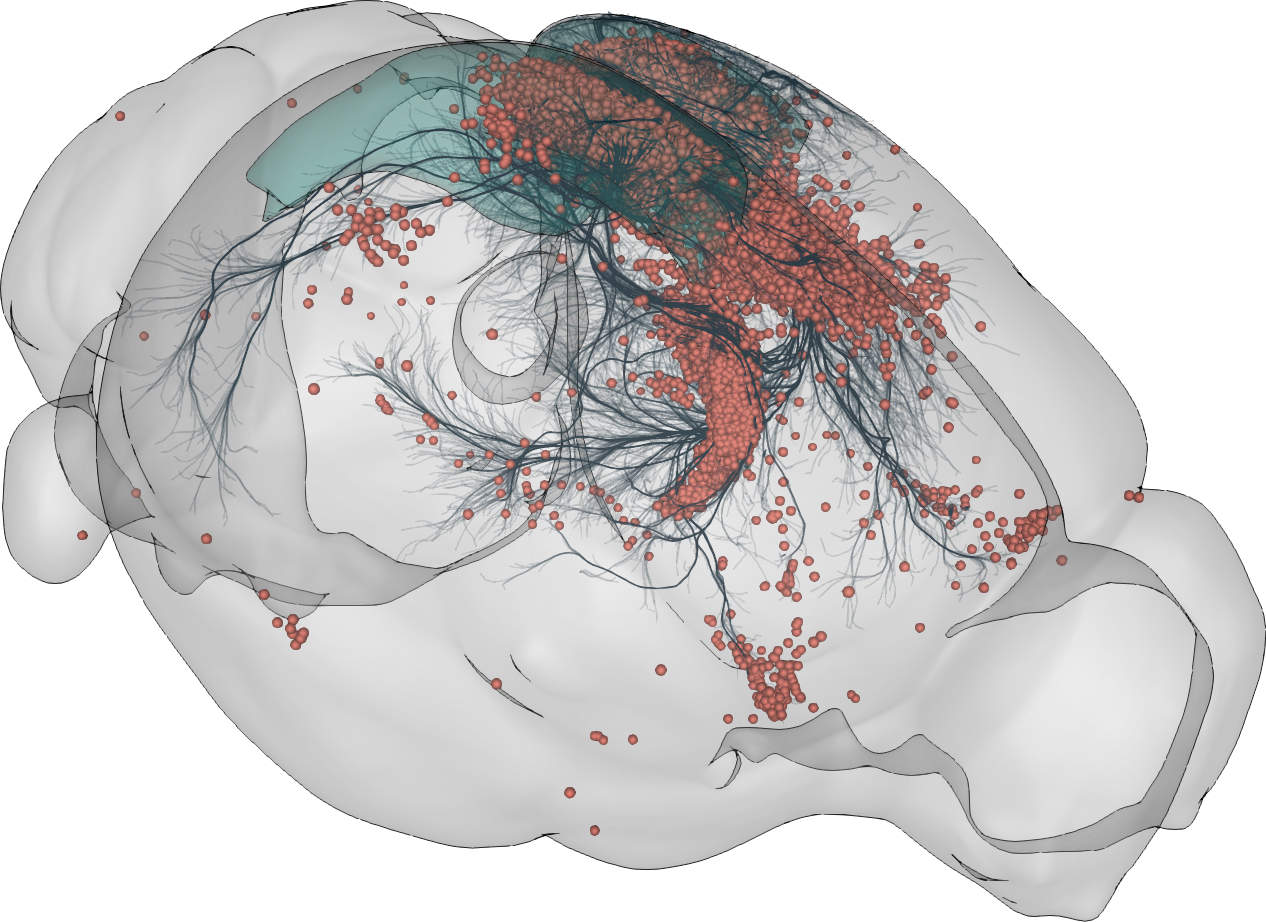

Visualisation

brainrender

Version 2

Expanding access

Adding new atlases

• Allen mouse brain with barrel annotations
• Blind mexican cavefish
• Latest version of Waxholm rat
• Axolotl
• Prarier Vole
• Princeton RAtlas
• Cuttlefish
• Developmental Mouse Brain atlas
• NHP
• Human

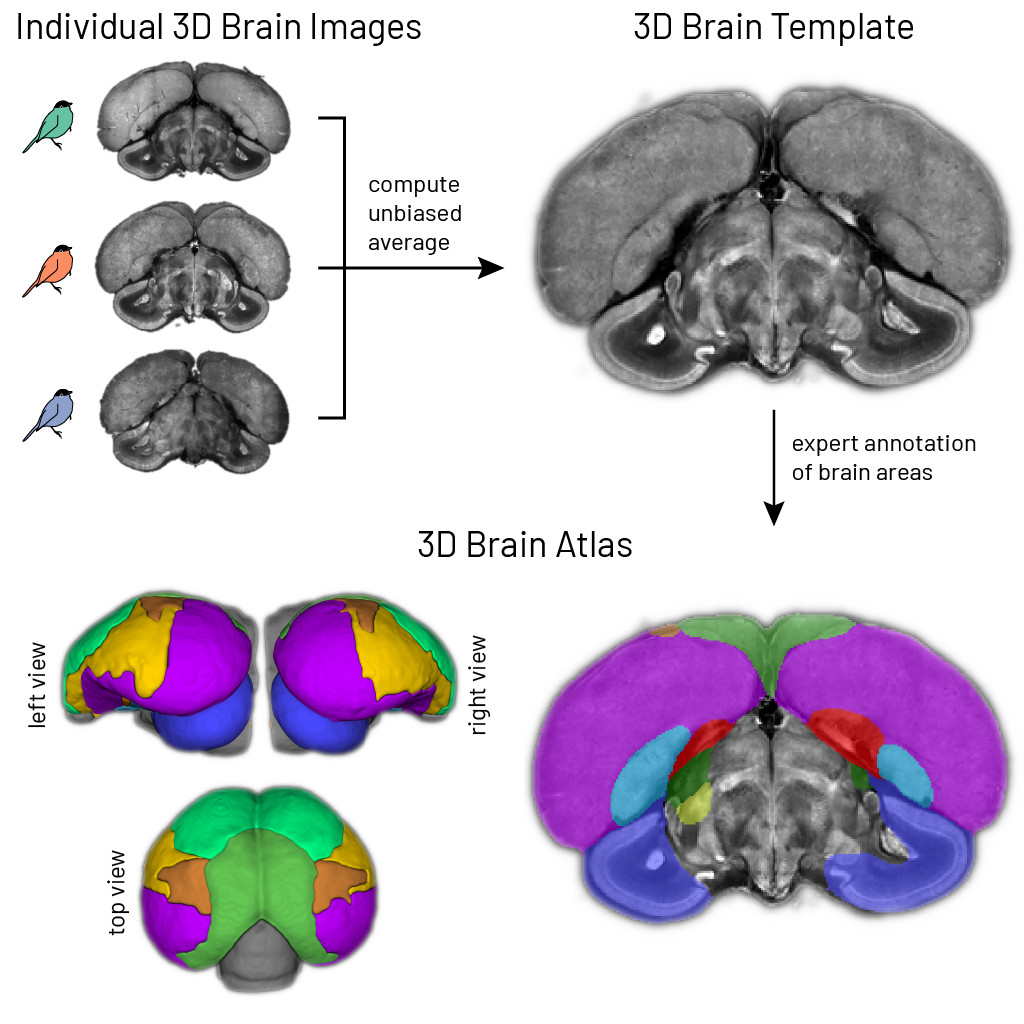

Building novel atlases

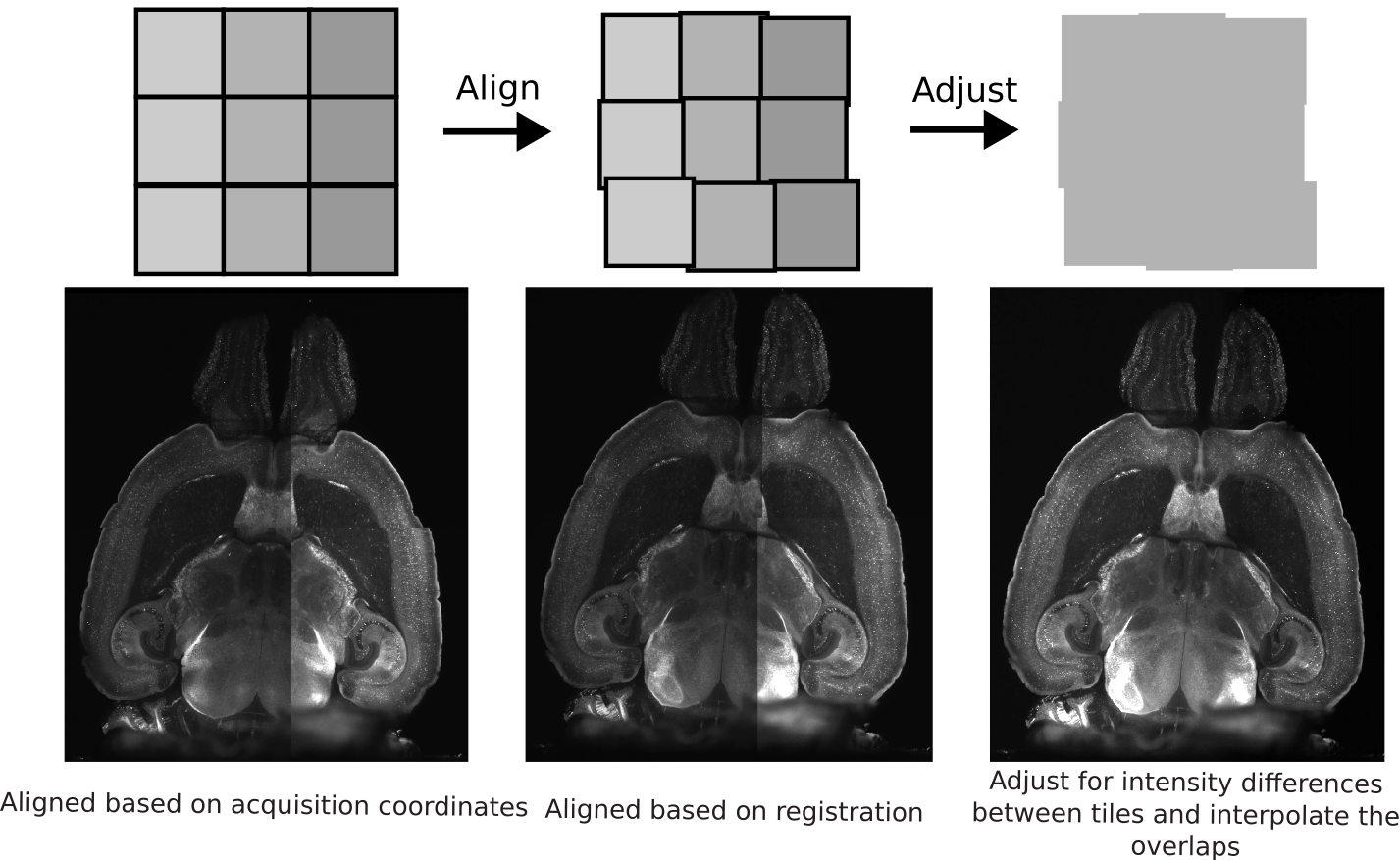

More raw data processing

Consistent napari environment

Support for more data types

Thanks

Support

Contributors

Stephen Lenzi, Rob Campbell, Joe Ziminski, Sofia Miñano, Niko Sirmpilatze, Nicholas Del Grosso, Laura Porta, Lee Cossell, Antonin Blot, David Pérez-Suárez, David Stansby, Will Graham, Patrick Roddy, Adrien Berchet, Mathieu Bourdenx, Ben Kantor, NovaFae, David Young, Sam Clothier, Gubra-ApS, Kailyn Fields, ramroomh, Samuel Diebolt, Chris Roat, Oren Amsalem, kclamar, Draga Doncila Pop, juanma9613, Jules Scholler, Iaroslavna Vasylieva, Nicolas Peschke, Justin Kiggins, Peter Sobolewski, Simão Bolota, chili-chiu, jaimergp, Sebastian Lammers, Matt Colligan, Paul Brodersen, Carter Peene, francesshei, Sean Martin, Adam Tyson, Federico Claudi, Luigi Petrucco, Alessandro Felder, Christian Niedworok, Charly Rousseau, Horst Obenhaus, Chryssanthi Tsitoura, Sepiedeh Keshavarzi, Mateo Vélez-Fort, Ben Dichter, 4iar, Marco Musy, Anna Medyukhina, stegiopast, EmanPaoli, lidakanari, Alexis Arnaudon, Yaroslav Halchenko, Ziyang Liu, Philip Shamash, koushik-ms, Harald Reingruber, Emily Jane Dennis, Peak, Maximilian Blacher, Hernando Martinez Vergara, Estelle, nicole-vissers, GD, Michael Kunst, Estelle Nassar, Sara Mederos, Igor Tatarnikov, Viktor Plattner, Carlo Castoldi, Jingjie Li, Guillaume Le Goc, Harry Carey, Matt Einhorn, Kimberly Meechan, Robert Kozol, Chang Huan Lo, Dhruv Sharma, Brandon Peri, Ivan Varela

Team

Laura Porta

Chang Huan lo

Joe Ziminski

Alessandro Felder

Niko Sirmpilatze

Igor Tatarnikov

Sofía Miñano

More details

neuroinformatics.dev

brainglobe.info
