Pose estimation with SLEAP

Introduction to HPC with Linux | 2023-05-15

Niko Sirmpilatze | Neuroinformatics Unit

Course materials

Sample data

/ceph/scratch/neuroinformatics-dropoff/SLEAP_HPC_test_data

• Mouse videos (from Loukia Katsouri)
• SLEAP project with:
  • labelled frames
  • trained models
  • prediction results

Github repository

github.com/neuroinformatics-unit/swc-hpc-pose-estimation

• This presentation
• Example scripts
• Detailed “How To” guide

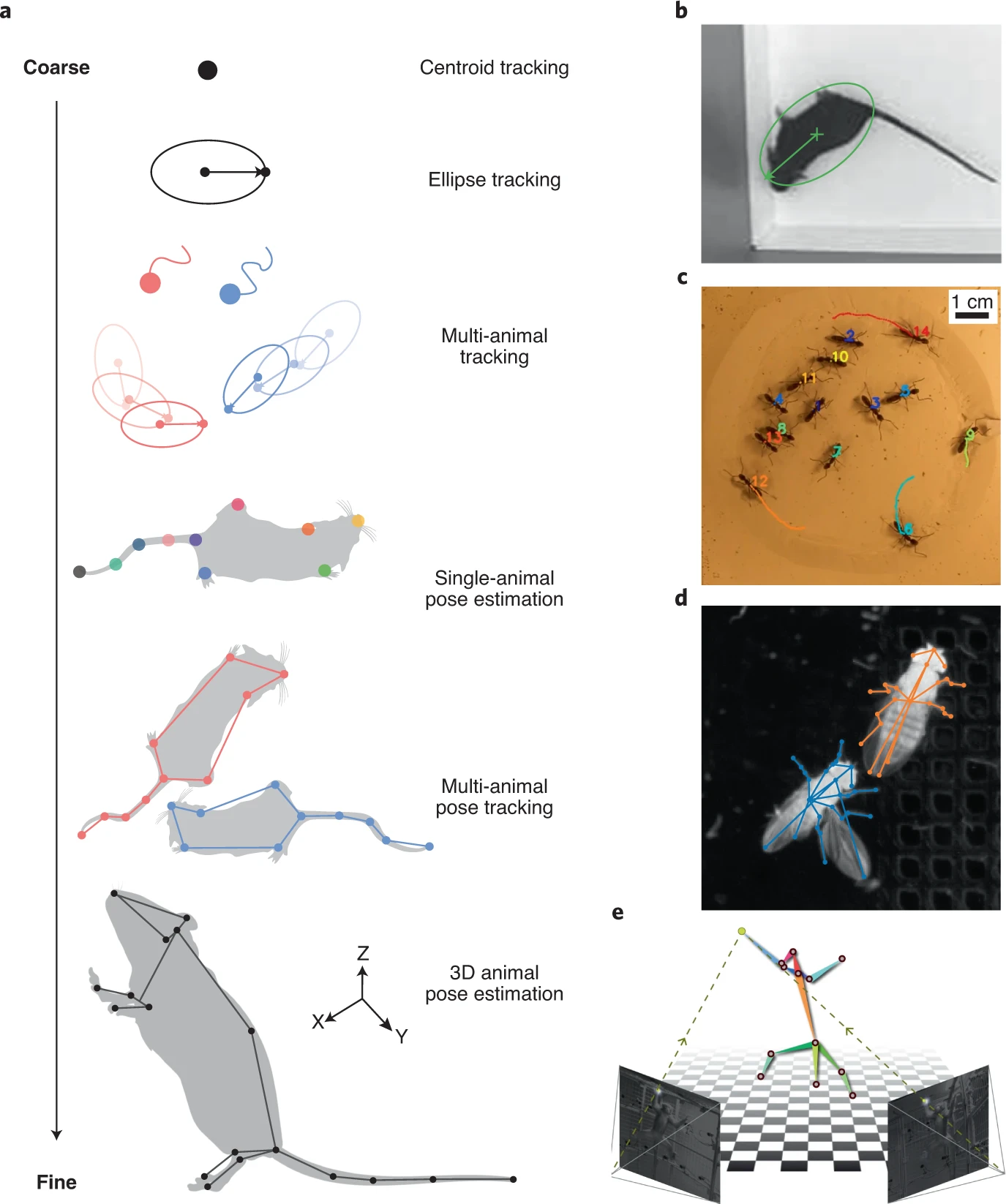

Tracking animals in videos

source: doi.org/10.1038/s41593-020-00734-z

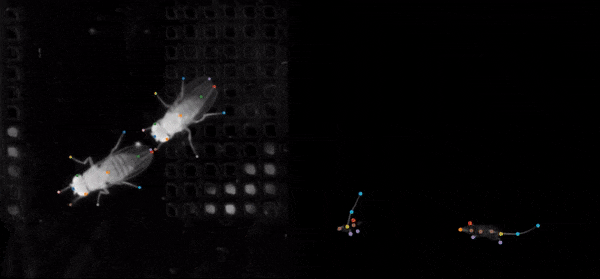

Pose estimation

source: doi.org/10.1038/s41593-020-00734-z

Existing tools

• DeepLabCut
• SLEAP
• Many others:
  • OpenPose
  • DeepPoseKit
  • Anipose
  • Freipose
  • …

SLEAP workflow

• Training and inference are GPU-intensive
• We can delegate to the HPC cluster’s GPU nodes

Label body parts

• Annotate frames using the sleap-label GUI on your PC/laptop
• Save project (e.g. labels.v001.slp)

Configure training

• In the sleap-label GUI: Predict/Run Training...

• When ready, Export training job package...

Training job package contents

labels.v001.slp.training_job.zip => unzip

# Copy of labelled frames
labels.v001.pkg.slp

# Model configuration files
centroid.json
centered_instance.json

# Bash scripts for running training and inference
train_script.sh
inference_script.sh

# Summary of all jobs
jobs.yaml

Top-down vs bottom-up

source: doi.org/10.1038/s41593-020-00734-z

Finding our project on the HPC

# Logging into the HPC cluster
ssh <SWC-USERNAME>@ssh.swc.ucl.ac.uk # Provide password
ssh hpc-gw1 # Provide password again

# Navigate to your SLEAP project
cd /ceph/scratch/neuroinformatics-dropoff/SLEAP_HPC_test_data
# Check the contents of your folder
ls -l

# Go inside the exported training package
cd labels.v001.slp.training_job
ls -l

# View the contents of train-script.sh
cat train-script.sh

train-script.sh

#!/bin/bash
sleap-train centroid.json labels.v001.pkg.slp
sleap-train centered_instance.json labels.v001.pkg.slp

Get SLURM to run the script

• Interactive
• Batch
• Array batch

Suitable for debugging (immediate feedback)

• Start an interactive job with one GPU

  srun -p gpu --gres=gpu:1 --pty bash -i

• Execute commands one-by-one, e.g.:

  module load SLEAP
  cd <MY-TRAINING-DIRECTORY>
  bash train-script.sh

  # Stop the session
  exit

Main method for submitting jobs

• Prepare a batch script, e.g. train_script.sbatch

• Submit the job:

  sbatch train_script.sbatch

• Monitor job status:

  squeue -u <SWC-USERNAME>

Useful for submitting many similar jobs

• Write a batch script
• Execute the script over an array of inputs in parallel

Get the example scripts

# Clone the GitHub repository
$ git clone https://github.com/neuroinformatics-unit/swc-hpc-pose-estimation.git

# List the available scripts for SLEAP
$ cd swc-hpc-pose-estimation/SLEAP/scripts
$ ls -1
infer_script.sbatch
run_sleap_training.py
sleap_topdown_trainer.py
train_script.sbatch
train_script_python.sbatch
train_script_python_array.sbatch

# View the contents of the SLURM train script
cat train_script.sbatch

Batch script for training

train_script.sbatch

#!/bin/bash

#SBATCH -p gpu # partition (queue)
#SBATCH -N 1   # number of nodes
#SBATCH --mem 12G # memory pool for all cores
#SBATCH -n 2 # number of cores
#SBATCH -t 0-04:00 # time (D-HH:MM)
#SBATCH --gres gpu:1 # request 1 GPU (of any kind)
#SBATCH -o slurm.%N.%j.out # STDOUT
#SBATCH -e slurm.%N.%j.err # STDERR
#SBATCH --mail-type=ALL
#SBATCH --mail-user=n.sirmpilatze@ucl.ac.uk

# Load the SLEAP module
module load SLEAP

# Define directories for data and exported training job
DATA_DIR=/ceph/scratch/neuroinformatics-dropoff/SLEAP_HPC_test_data
JOB_DIR=$DATA_DIR/labels.v001.slp.training_job
# Go to the job directory
cd $JOB_DIR

# Run the training script generated by SLEAP
./train-script.sh

Submit and monitor batch script

# Submit job
$ sbatch train_script.sbatch
Submitted batch job 3445652

# View status of queued/running jobs
$ squeue -u <SWC-USERNAME>
JOBID    PARTITION  NAME     USER      ST  TIME   NODES  NODELIST(REASON)
3445652  gpu        slurm_ba sirmpila  R   23:11  1      gpu-sr670-20

# View status of running/completed jobs
$ sacct -u <SWC-USERNAME>
JobID           JobName  Partition    Account  AllocCPUS      State ExitCode
------------ ---------- ---------- ---------- ---------- ---------- --------
3445652      slurm_bat+        gpu     swc-ac          2  COMPLETED      0:0
3445652.bat+      batch                swc-ac          2  COMPLETED      0:0

# View the contents of standard output and error
$ cat slurm.gpu-sr670-20.3445652.out
$ cat slurm.gpu-sr670-20.3445652.err

Check trained models

$ cd /ceph/scratch/neuroinformatics-dropoff/SLEAP_HPC_test_data
$ cd labels.v001.slp.training_job
$ cd models
$ ls -1
230509_141357.centered_instance
230509_141357.centroid

$ cd 230509_141357.centered_instance
$ ls -1
best_model.h5
initial_config.json
labels_gt.train.slp
labels_gt.val.slp
labels_pr.train.slp
labels_pr.val.slp
metrics.train.npz
metrics.val.npz
training_config.json
training_log.csv

• View evaluation metrics with the sleap-label GUI on your PC/laptop
• Predict/Evaluation Metrics for Trained Models...

Batch script for inference

infer_script.sbatch

#!/bin/bash

#SBATCH -p gpu # partition (queue)
#SBATCH -N 1   # number of nodes
#SBATCH --mem 12G # memory pool for all cores
#SBATCH -n 2 # number of cores
#SBATCH -t 0-01:00 # time (D-HH:MM)
#SBATCH --gres gpu:1 # request 1 GPU (of any kind)
#SBATCH -o slurm.%N.%j.out # STDOUT
#SBATCH -e slurm.%N.%j.err # STDERR
#SBATCH --mail-type=ALL
#SBATCH --mail-user=n.sirmpilatze@@ucl.ac.uk

# Load the SLEAP module
module load SLEAP

# Define data directory
DATA_DIR=/ceph/scratch/neuroinformatics-dropoff/SLEAP_HPC_test_data
# Define exported job directory
JOB_DIR=$DATA_DIR/labels.v001.slp.training_job

# Go to the job directory
cd $JOB_DIR

# Run the inference command
sleap-track $DATA_DIR/videos/M708149_EPM_20200317_165049331-converted.mp4 \
    -m $JOB_DIR/models/230509_141357.centroid/training_config.json \
    -m $JOB_DIR/models/230509_141357.centered_instance/training_config.json \
    --gpu auto \
    --tracking.tracker none \
    -o labels.v001.slp.predictions.slp \
    --verbosity json \
    --no-empty-frames

Check the predictions

$ cd /ceph/scratch/neuroinformatics-dropoff/SLEAP_HPC_test_data
$ cd labels.v001.slp.training_job
$ ls -1
centered_instance.json
centroid.json
inference-script.sh
jobs.yaml
labels.v001.pkg.slp
labels.v001.slp.predictions.slp
models
train-script.sh

• Inspect the predictions with the sleap-label GUI on your PC/laptop

The training - inference cycle

• Correct some of the predictions: see Prediction-assisted labeling
• Merge corrected labels into the initial training set: see Merging guide
• Save the merged training set aslabels.v002.slp
• Export a new training job labels.v002.slp.training_job (you may reuse the training configurations from v001)
• Repeat the training-inference cycle until satisfied

Batching Python scripts

• So far we have submitted shell scripts/commands
  • essentially using the command-line interface of SLEAP

• We can also submit Python scripts
  • using the Python API of SLEAP
  • or any custom Python code

$ cd swc-hpc-pose-estimation/SLEAP/scripts
$ ls -1
infer_script.sbatch
run_sleap_training.py
sleap_topdown_trainer.py
train_script.sbatch
train_script_python.sbatch
train_script_python_array.sbatch

Example Python script

run_sleap_training.py

import argparse
from pathlib import Path
from sleap_topdown_trainer import SLEAPTrainer_TopDown_SingleInstance

TEST_DATA_DIR = Path("/ceph/scratch/neuroinformatics-dropoff/SLEAP_HPC_test_data")


def main(batch_size=4):
    """Train SLEAP model with variable batch size."""
    ...


if __name__ == "__main__":
    parser = argparse.ArgumentParser(
        description="Train SLEAP model with variable batch size."
    )
    parser.add_argument(
        "--batch-size",
        "--batch_size",
        "-b",
        type=int,
        default=4,
        dest="batch_size",
        help="Batch size for training (default: 4)",
    )
    args = parser.parse_args()
    main(batch_size=args.batch_size)

Example batch script

train_script_python.sbatch

#!/bin/bash

#SBATCH -p gpu # partition (queue)
#SBATCH -N 1   # number of nodes
#SBATCH --mem 12G # memory pool for all cores
#SBATCH -n 2 # number of cores
#SBATCH -t 0-04:00 # time (D-HH:MM)
#SBATCH --gres gpu:1 # request 1 GPU (of any kind)
#SBATCH -o slurm.%N.%j.out # STDOUT
#SBATCH -e slurm.%N.%j.err # STDERR
#SBATCH --mail-type=ALL
#SBATCH --mail-user=n.sirmpilatze@ucl.ac.uk

# Load the SLEAP module
module load SLEAP

# Define directory for Python scripts
DATA_DIR=/ceph/scratch/neuroinformatics-dropoff/SLEAP_HPC_test_data
CODE_DIR=$DATA_DIR/swc-hpc-pose-estimation/SLEAP/scripts
cd $CODE_DIR

# Run the Python script (for batch size 4)
python run_sleap_training.py --batch-size 4

Array jobs

What if we want to run the previous script for multiple batch sizes?

Solution: submit an array job

• the jobs will run in parallel if there are enough resources
• otherwise, they will be scheduled to run sequentially

Example array job

train_script_python_array.sbatch

#!/bin/bash

#SBATCH -p gpu # partition (queue)
#SBATCH -N 1   # number of nodes
#SBATCH --mem 12G # memory pool for all cores
#SBATCH -n 2 # number of cores
#SBATCH -t 0-04:00 # time (D-HH:MM)
#SBATCH --gres gpu:rtx2080:1 # request specific GPU type (rtx2080)
#SBATCH -o slurm.%N.%j.out # STDOUT
#SBATCH -e slurm.%N.%j.err # STDERR
#SBATCH --mail-type=ALL
#SBATCH --mail-user=n.sirmpilatze@ucl.ac.uk
#SBATCH --array=0-2

# Load the SLEAP module
module load SLEAP

# Define directory for Python scripts
DATA_DIR=/ceph/scratch/neuroinformatics-dropoff/SLEAP_HPC_test_data
CODE_DIR=$DATA_DIR/swc-hpc-pose-estimation/SLEAP/scripts
cd $CODE_DIR

# Run the Python script across batch sizes 2, 4, 8
ARGS=(2 4 8)
python run_sleap_training.py --batch-size "${ARGS[$SLURM_ARRAY_TASK_ID]}"

Useful links

Pose estimation

• Quantifying behavior to understand the brain
• SLEAP
• DeepLabCut

SWC wiki

• Overview of SLURM job scheduler
• Logging into the Cluster
• CPU and GPU Platform Architecture
• Linux Environment Modules

Acknowledgements

• Alex Martin (setting up HPC modules)
• Loukia Katsouri (mouse videos)
• Laura Schwarz and Tom Hagley (SLEAP workflow)
• Chang Huan Lo (SLEAP Python code)
