Add Google Drive and AWS to datashuttle - Final GSoC Report#

../_images/gsoc-niu.png

Introduction#

Hi, I am Shrey. This summer, I had the opportunity to contribute to open-source neuroscience software through Google Summer of Code — a program that connects student developers with mentoring organizations to work on real-world projects. I worked with the Neuroinformatics Unit to enhance datashuttle, a tool for the creation, validation and transfer of neuroscience project folders.

In this blog post, I’ll share my experience adding cloud storage support to datashuttle, specifically integrating Google Drive and Amazon Web Services (AWS) S3 buckets as new remote storage options. This project expanded the tool’s storage capabilities beyond its original SSH-based transfers, giving researchers more flexibility in how they manage and store their data.

Mentors: Joseph Ziminski, Niko Sirmpilatze, Adam Tyson

Project Overview#

Neuroscientists typically collect diverse types of data during experiments, including behavioral data (such as camera feeds tracking animal movement), electrophysiological data from neural probes, imaging data from microscopes, and physiological measurements. When researchers use different data organization schemes across labs or even within the same lab, it creates significant challenges: analysis scripts may fail to locate files, data becomes difficult to share between collaborators, and valuable research time is lost navigating inconsistent folder structures.

datashuttle addresses these challenges by automating the creation, validation, and transfer of neuroscience project folders organized according to the NeuroBlueprint standard. This standardization ensures that research data follows consistent naming conventions and folder hierarchies, making it easier for researchers to share analysis pipelines, collaborate across institutions, and maintain organized projects as they scale.

Neuroscience researchers typically acquire data on separate acquisition machines and then store them in a central data storage. Prior to this project, datashuttle supported data transfers only to central machines through drive mounting or SSH connections. While effective, this approach limited adoption to labs with dedicated storage infrastructure. Many neuroscience labs, particularly smaller research groups or those at institutions with limited IT resources, rely on cloud storage solutions like Google Drive or AWS for their data management needs.

This project extended datashuttle’s remote storage capabilities to include Google Drive and AWS S3 buckets. This expansion significantly broadens datashuttle’s accessibility, allowing research labs without dedicated servers to benefit from standardized data organization and automated transfers.

Technical Implementation Overview#

Dual Interface Development: datashuttle provides both a Python API for programmatic use and a Terminal User Interface (TUI, a user interface that runs in the terminal) built with Textual for interactive use. Every new feature needed to be implemented across both interfaces, requiring careful consideration of user experience patterns in both programmatic and interactive contexts while minimizing code duplication.

Cloud Storage Integration: Rather than implementing custom transfer protocols, datashuttle leverages Rclone — a powerful command-line program for managing cloud storage. This project required an understanding of Rclone’s configuration system, authentication workflows, and transfer mechanisms for both Google Drive and AWS S3. Each cloud provider has distinct authentication requirements: Google Drive uses OAuth2 flows requiring browser-based authorization, while AWS uses access keys and secret keys with various authentication methods.

Asynchronous Operations: Cloud authentication processes, particularly Google Drive’s OAuth flow, require user interaction. The TUI implementation needed sophisticated background processing to prevent interface freezing during connection setup, requiring careful orchestration of Python’s threading and subprocess APIs.

What I did#

Background#

While finding organizations to contribute to for GSoC 2025, I came across the Neuroinformatics Unit (NIU), which was their first time participating in GSoC. Amongst all the projects, datashuttle caught my attention because of my interest in SSH and cloud storage and a user interface in the terminal seemed very astonishing.

Contributing to a new large codebase seems daunting at first. So, I followed a very simple process while contributing: reproduce the bug from the issue description, identify the top-level function most likely to contain the bug, then use debuggers and print statements to trace through the call stack (using a pen and paper really helps). I would iteratively drill down through each function call, following the execution path until I located the specific code that needed to be fixed. With time, you start putting together a mental map of how things work. To understand framework-specific code, documentation is one’s best friend.

Contributions#

Before the GSoC coding period began, I worked on fixing issues on the datashuttle repository and merged 3 PRs. Here are the PRs that were merged:

  1. Add Workers for transferring data and Loading Animation - Moved the data transfer logic to run in thread workers to free up the main thread for GUI/TUI rendering.

  2. Add Tests for Renaming File/Folder on directorytree - Added test covering a keyboard shortcut for renaming a file or folder through the Textual Directory Tree widget.

  3. Correct mainwindow typehints - Fixed incorrect type hints for a function argument across the codebase.

These PRs helped me explore various parts of the codebase and understand the overall architecture better.

During the coding period, the primary focus was on the implementation, tests and documentation for the Google Drive and AWS backends.

PRs created during the coding period#

  1. Suggest next sub ses remote — PR #484

    • Exposed the Python API functions in the TUI to search remote folders for suggesting next subject and session folders. By default, the local project folders are used to suggest next subject/session folder. Using the search_central option allows the user to search both the local and central project folders for suggestions.

    • Implemented thread workers to handle background searching of folders while displaying a loading indicator.

    • Status: Merged

  2. Implemented the core logic for Google Drive and AWS connection setup via Python API and Terminal User Interface (TUI) — PR #503

    • Implemented the core functions to authenticate to Google Drive and AWS and use Rclone for data transfers.

    • Exposed the underlying functions of datashuttle’s Python API in the Terminal User Interface.

    • Refactored polling the central storage for SSH transfers into a single unified function, used Rclone rather than sftp to reduce code duplication and improve logic.

    • Used threading library to run connection setup without blocking the TUI.

    • Used Python’s subprocess API to implement cancellation of connection setup via killing the underlying process.

    • Status: Merged

  3. Wrote tests with pytest to test data transfers to Google Drive and AWS buckets — PR #570

    • Refactored existing transfer tests for SSH transfers to extend them for Google Drive and AWS.

    • Used GitHub secrets for connection credentials to run tests in the CI.

    • Wrote tests for connection setup via the TUI.

    • Wrote backward compatibility tests and extended existing TUI tests to test the new connection widgets.

    • Status: Merged

  4. Added documentation for users to set up connection via the new connection methods — PR #580

    • Updated and enhanced documentation to include instructions to connect to Google Drive and AWS buckets and added relevant examples.

    • Focused on providing clear instructions for setup, usage, and functionality, benefiting future contributors and users.

    • Status: Merged

  5. Integration of the core implementations, tests and docs — PR #556

    • This PR serves as an integration point for all the changes related to Google Drive and AWS S3 functionality.

    • To maintain code clarity and facilitate reviews, we split the implementation, testing, and documentation into separate PRs that merge into this one

    • Status: Merged

All of these PRs were merged into the main branch and the new functionality will be available in the next release of datashuttle.

In addition to writing code, I performed code review for about 10 PRs, for which I was the sole approver prior to merging. Some examples - #515, #208, #551. Here is a comprehensive list.

Screenshots

../_images/datashuttle-new-project-dark.png ../_images/datashuttle-new-project-light.png

Setting up a new project with Google Drive storage option

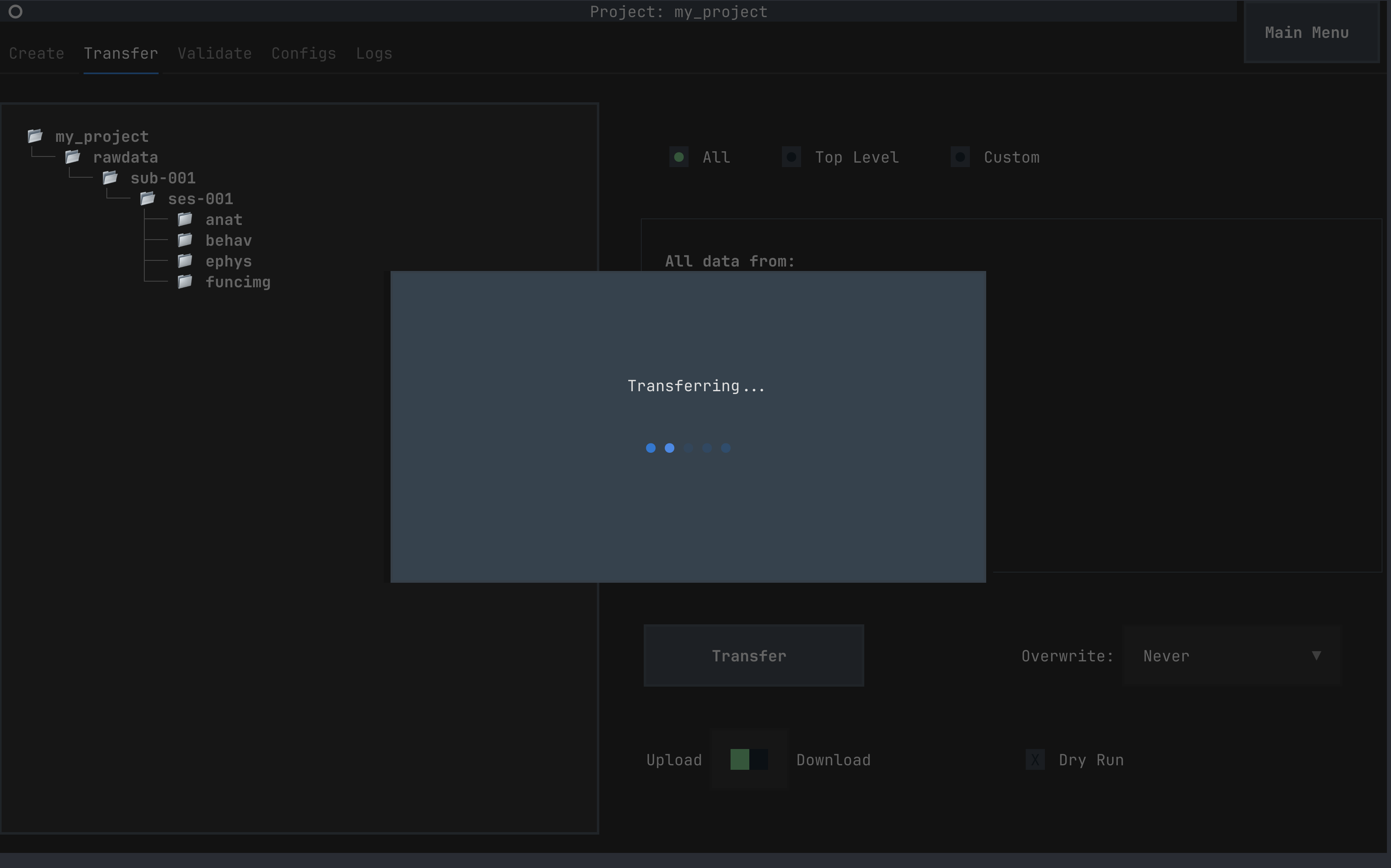

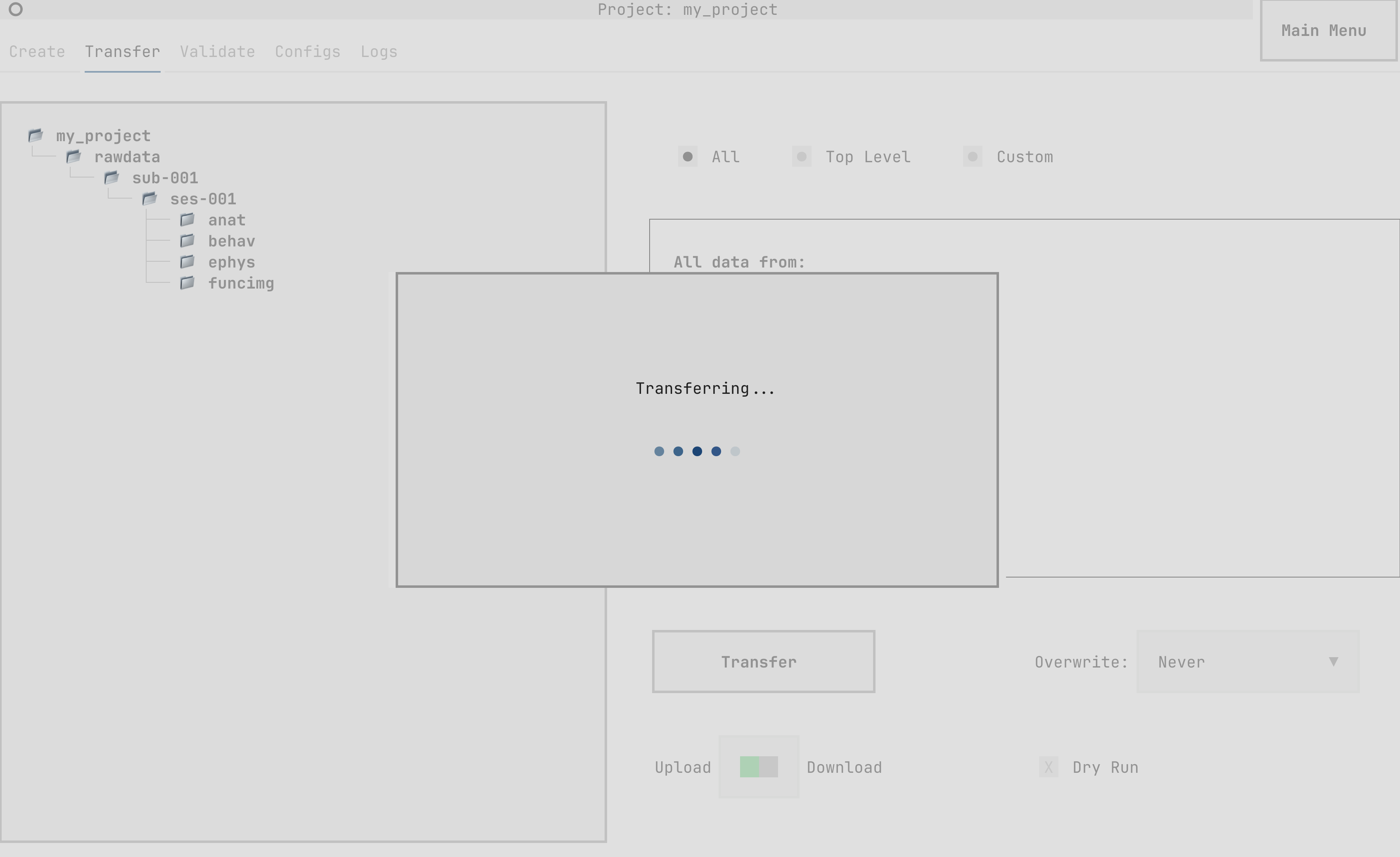

../_images/datashuttle-transferring-data-dark.png ../_images/datashuttle-transferring-data-light.png

Transferring data using datashuttle

Challenges / Learnings#

The project was smooth sailing for the most part. However, a few parts felt a bit challenging.

  1. Developing a multi-step authentication flow

    Creating the complex, multi-step authentication workflows in Textual presented a significant paradigm shift from traditional web development which I was more accustomed to. The connection setup process required orchestrating several sequential UI states, dynamically managing UI elements and flow control based on user input. Example - dynamically showing and removing input boxes and buttons on each UI state, reusing UI elements, use of workers / threads for handling connection setup while keeping the main thread responsive, launching subprocess from within the worker threads, storing the process objects and killing them when user cancels setup.

    How did I overcome it? Well, pen and paper. Visualizing the entire flow helped me focus on the overall architecture without getting too lost in the details.

  2. Writing tests to run in the CI environment

    Since CI environments don’t have access to browsers (needed for Google’s OAuth for Google Drive access), my mentor and I discussed several strategies and tried implementing a few of them for automated testing in the CI until we found and picked a suitable one. We started with implementing a service account file based authentication but due to a policy change by Google, this method would require users to have a workspace account. Ultimately, we settled on using a config token for browserless access in the GitHub secrets. This config token is pre-generated by authenticating to Google Drive via browser and contains access and refresh tokens in an encoded format required for authorization to Google Drive. This allows connection setup to be run by just using the config token without needing to authenticate via a browser (making testing in CI environments possible).

Future work#

All the code has been merged into the main branch and is due for a release. Further work will involve discussing with users how they are finding the functionality, get feedback from them and improve upon the feedback.

Conclusion#

The integration of Google Drive and AWS S3 storage capabilities significantly expands datashuttle’s accessibility and utility for neuroscience researchers. By extending beyond SSH connections to incorporate widely-used cloud storage platforms, this project removes a key barrier to adoption for labs without dedicated central servers. Through careful implementation, testing, and documentation, these new features maintain datashuttle’s core mission of standardizing neuroscience data management while making it accessible to a broader scientific community.

Acknowledgements#

I would like to express my gratitude to my mentor, Joe Ziminski, for his constant encouragement and support throughout this project. His constant positive comments on GitHub kept me motivated, and I have learnt a lot on how to write clean and documented code from him. My coding style has improved a lot as a result of the regular code reviews. It was an absolute pleasure working with him.

Finally, I would like to thank Google for organizing GSoC helping first-time contributors like me to enter the world of open source.
