Video-based analysis of animal behaviour
SWC/GCNU Neuroinformatics Unit
Niko Sirmpilatze, Chang Huan Lo, Alessandro Felder
Schedule: morning
10:00 - 10:20: Welcome and troubleshooting
10:20 - 11:00: Background
What is behaviour and why do we study it?

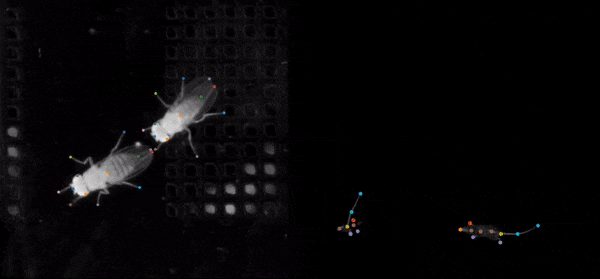

Tracking animals with pose estimation
11:00 - 12:00: Practice with SLEAP
Annotate video frames

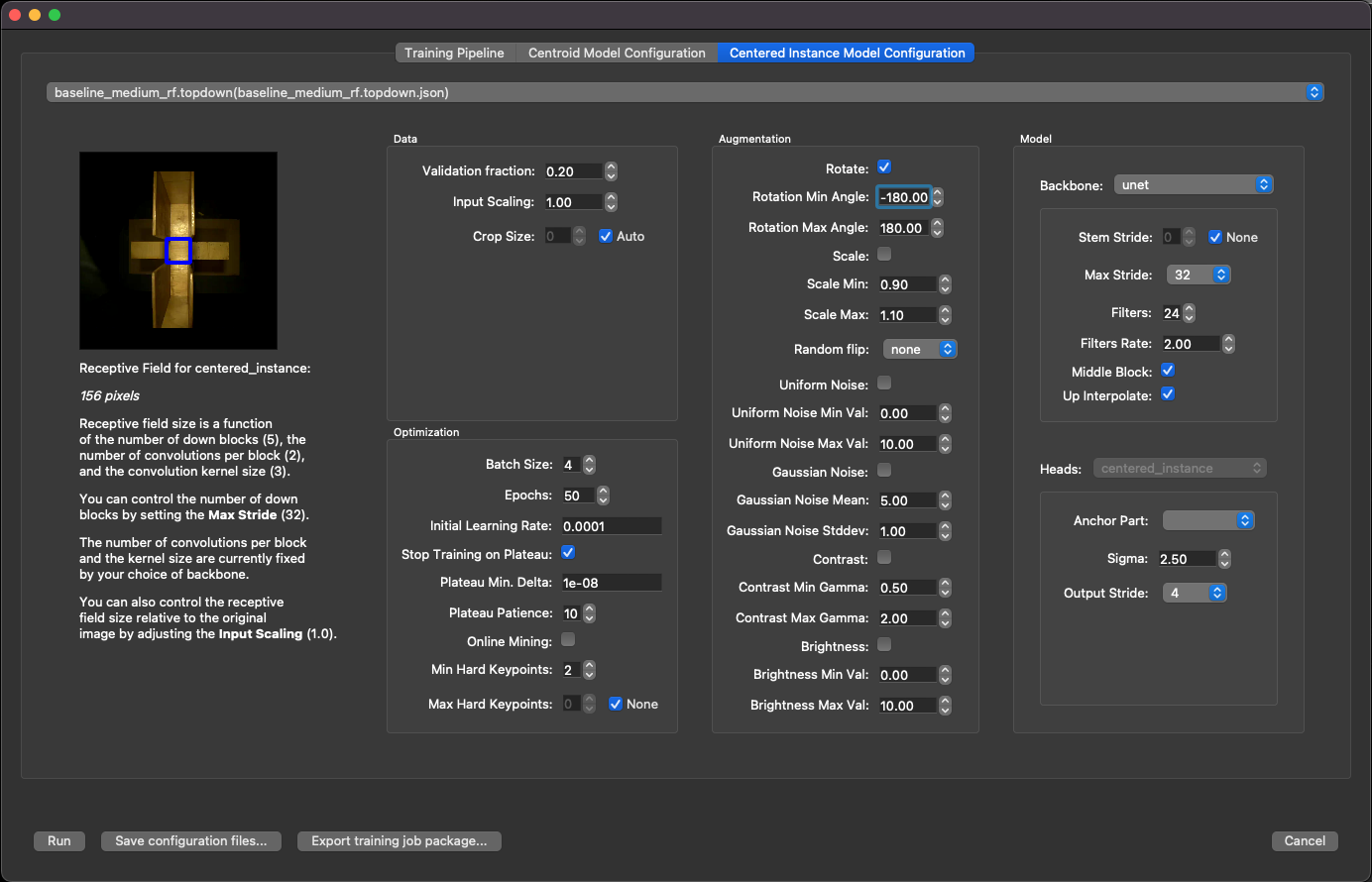

Train a pose estimation model
12:00 - 13:30: Lunch break and SWC lab meeting
Schedule: afternoon
13:30 - 14:30: Practice with SLEAP cont.

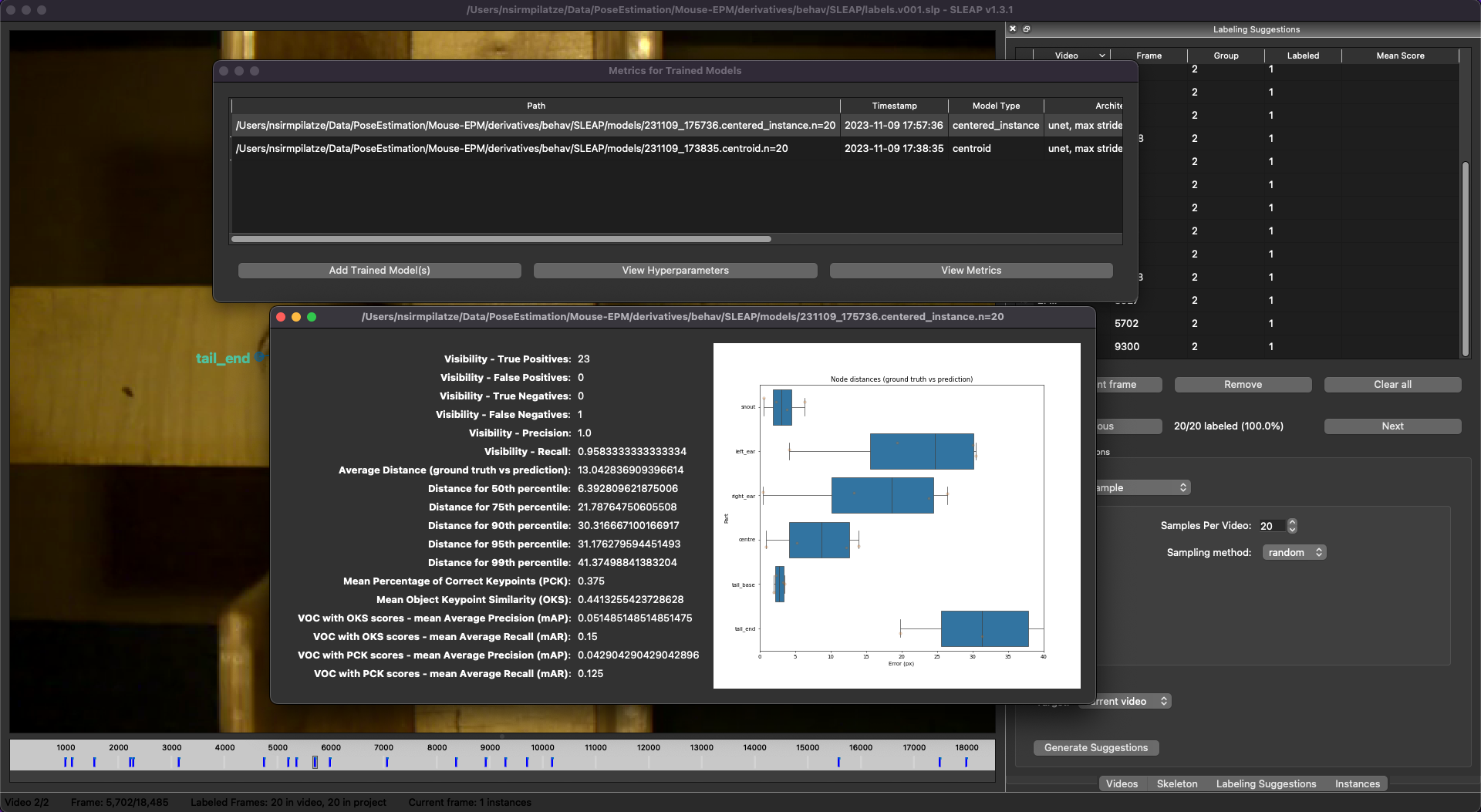

Evaluate trained models
Run inference
14:30 - 15:00: Coffee break and discussion
15:00 - 16:30: Practice with Jupyter notebook
Load and visualise pose tracks
Filter pose tracks
Quantify time spent in ROIs
16:30 - 17:00: Further discussion
Behaviour classification and action segmentation
Course materials
These slides
Course webpage
GitHub repository
Sample data
Install SLEAP via conda
Read the official SLEAP installation guide . If you already have conda installed, you may skip the mamba installation steps outlined there. Instead, install the libmamba-solver for conda:
conda install -n base conda-libmamba-solverconda config --set solver libmamba
After that, you can follow the rest of the SLEAP installation guide , substituting conda for mamba in the relevant commands.
conda create -y -n sleap -c conda-forge -c nvidia -c sleap -c anaconda sleap=1.3.1
conda create -y -n sleap -c conda-forge -c anaconda -c sleap sleap=1.3.1
Defining behaviour
The total movements made by the intact animal
Behavior is the internally coordinated responses (actions or inactions) of whole living organisms (individuals or groups) to internal and/or external stimuli , excluding responses more easily understood as developmental changes
Neural activity and behaviour
Marr’s three levels of analysis
Neuroscience needs behaviour
…detailed examination of brain parts or their selective perturbation is not sufficient to understand how the brain generates behavior
…it is very hard to infer the mapping between the behavior of a system and its lower-level properties by only looking at the lower-level properties
The behavioral work needs to be as fine-grained as work at the neural level. Otherwise one is imperiled by a granularity mismatch between levels…
…the explanations of the results at the neural level are almost entirely dependent on the higher-level vocabulary and concepts derived from behavioral work. Lower levels of explanation do not “explain away” higher levels.
Quantifying behaviour: ethogram
Ethogram: a list of typical behaviours performed by an animal, including when and how often they occur
0:30
0
0
1
1:00
0
0
1
1:30
1
0
0
2:00
0
1
0

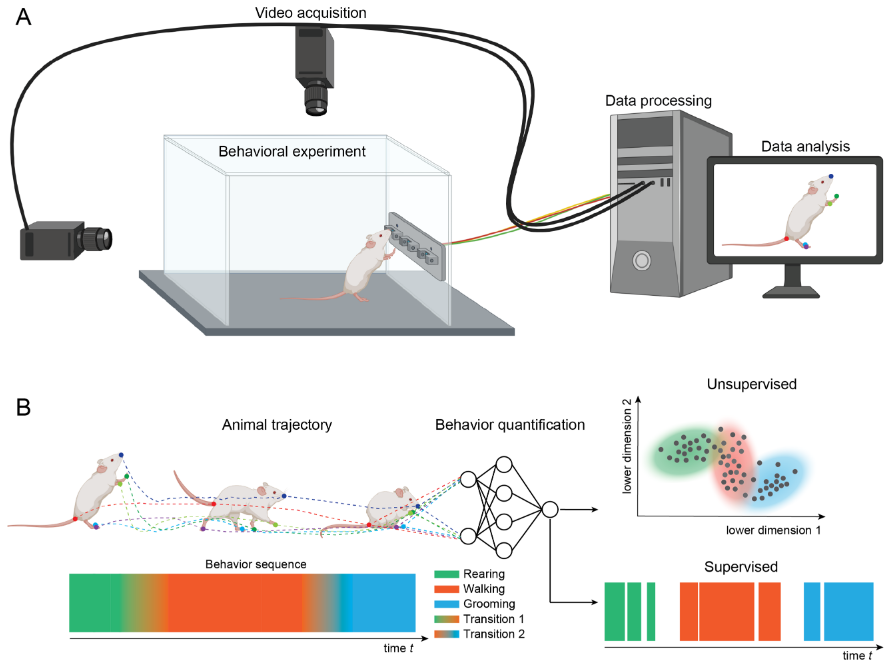

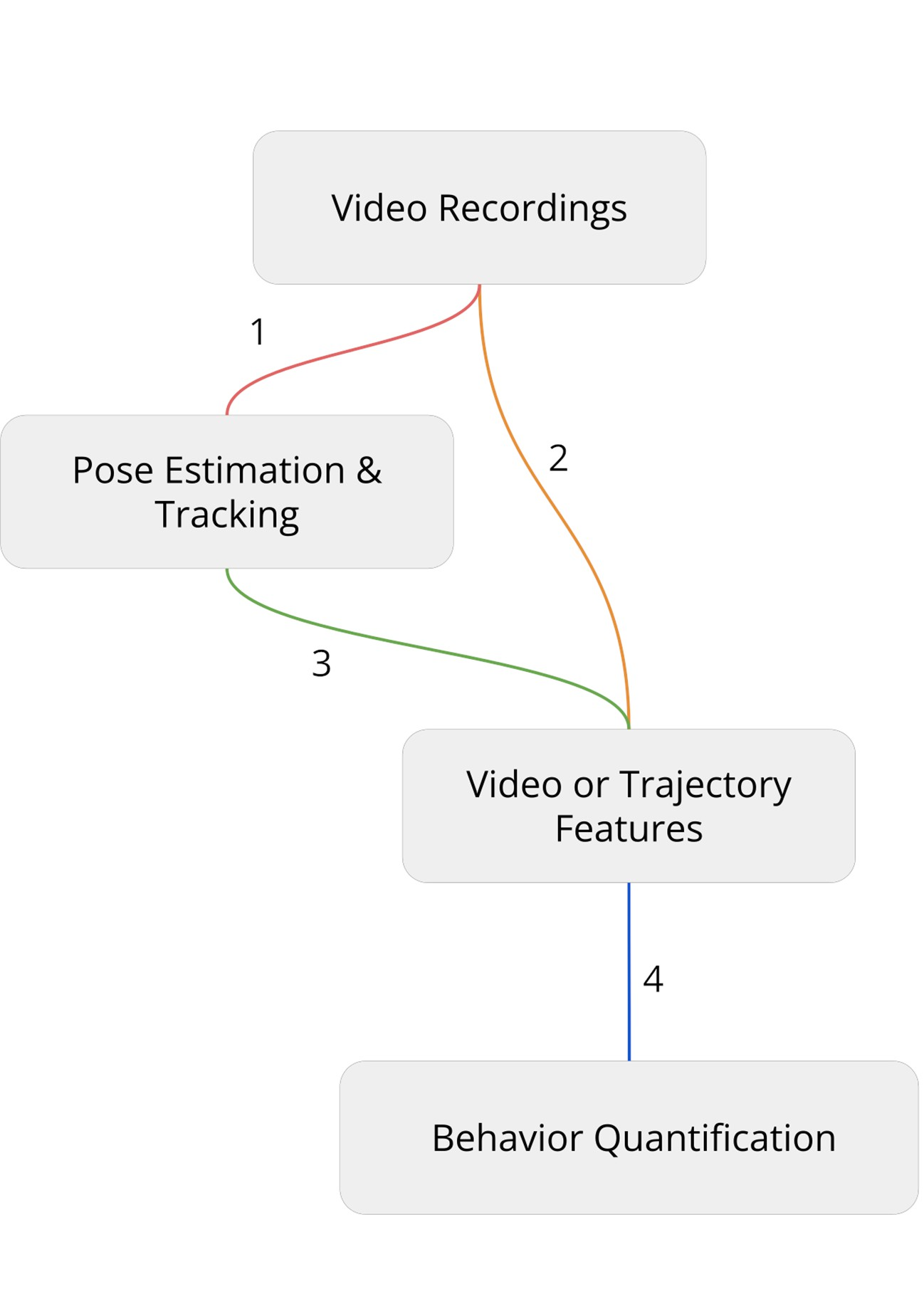

Quantifying behaviour: modern
flowchart TB
video -->|compression/re-encoding | video2["compressed video"]
video2 -->|pose estimation + tracking| tracks["pose tracks"]
tracks --> |calculations| kinematics
tracks -->|classifiers| actions["actions / behav syllables"]
video2 --> |comp vision| actions

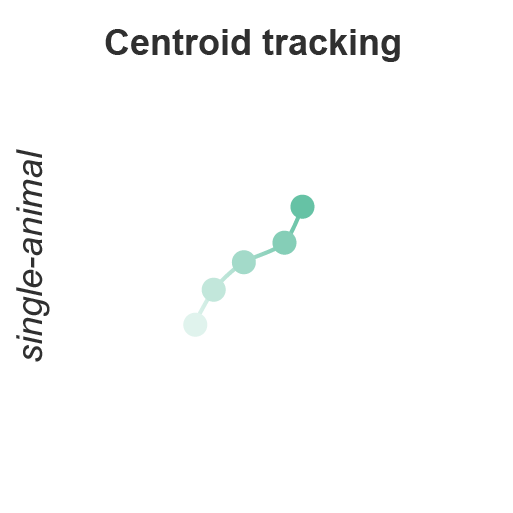

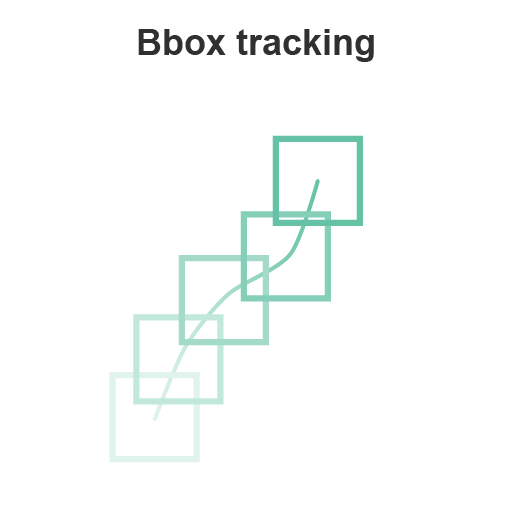

Finding and tracking animals

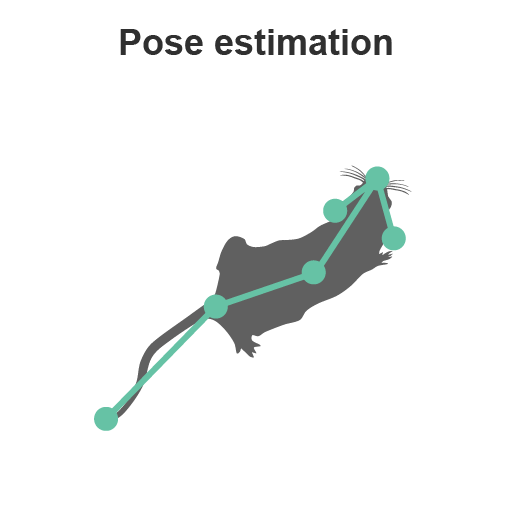

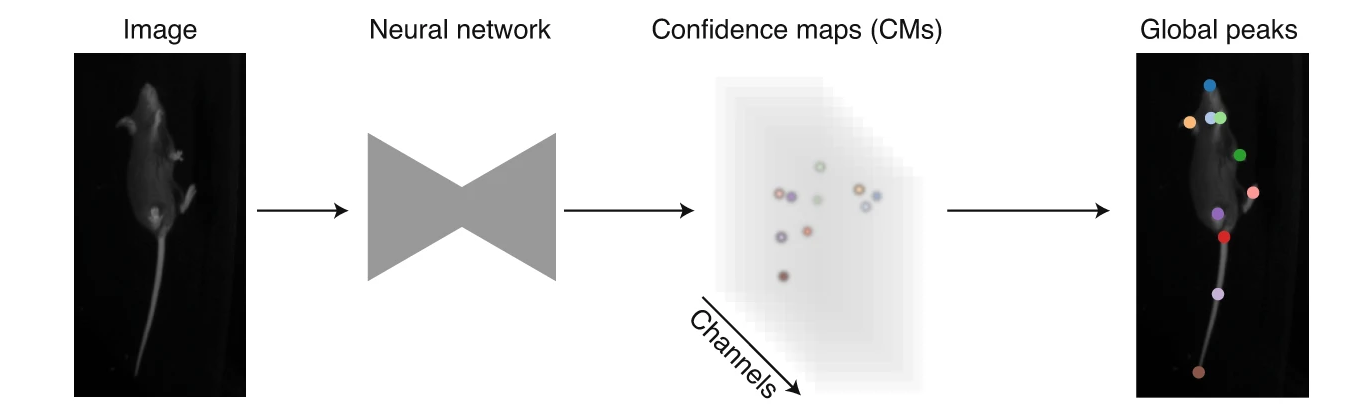

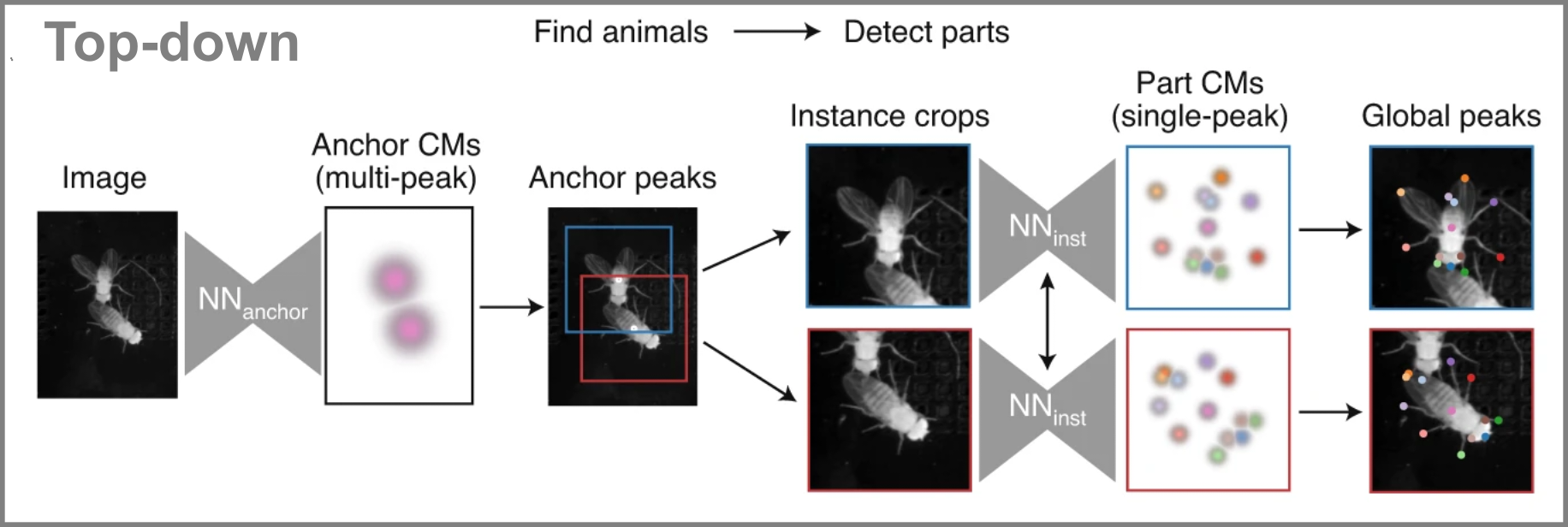

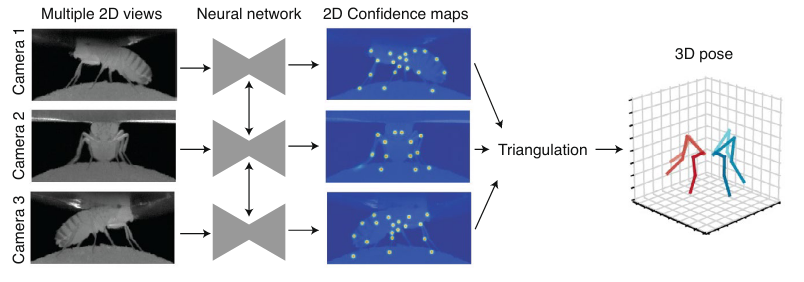

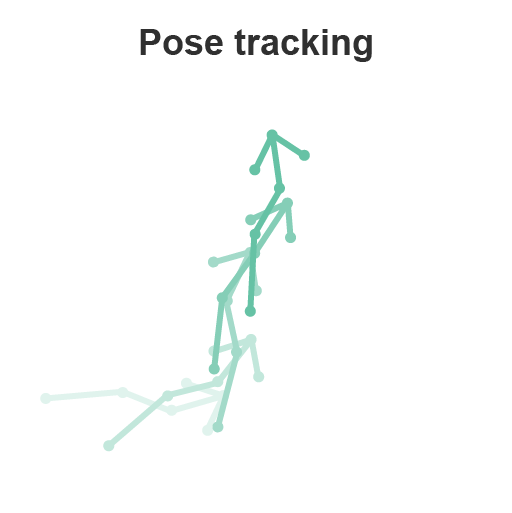

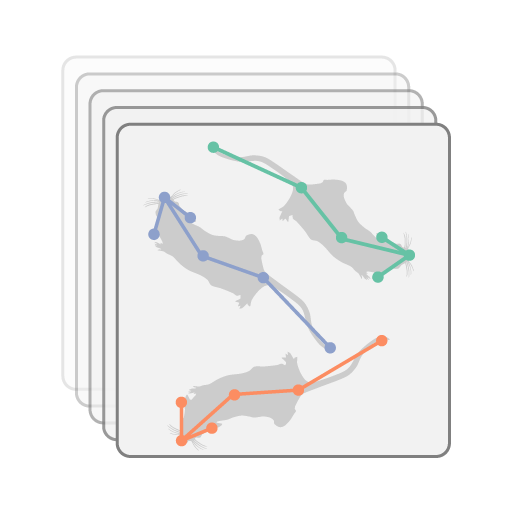

Pose estimation
flowchart TB
classDef emphasis fill:#03A062;
video -->|compression/re-encoding | video2["compressed video"]
video2 -->|pose estimation + tracking| tracks["pose tracks"]
tracks --> |calculations| kinematics
tracks -->|classifiers| actions["actions / behav syllables"]
video2 --> |comp vision| actions
linkStyle 1 stroke:#03A062, color:;
class video2 emphasis
class tracks emphasis
“easy” in humans - vast amounts of data
“harder” in animals - less data, more variability

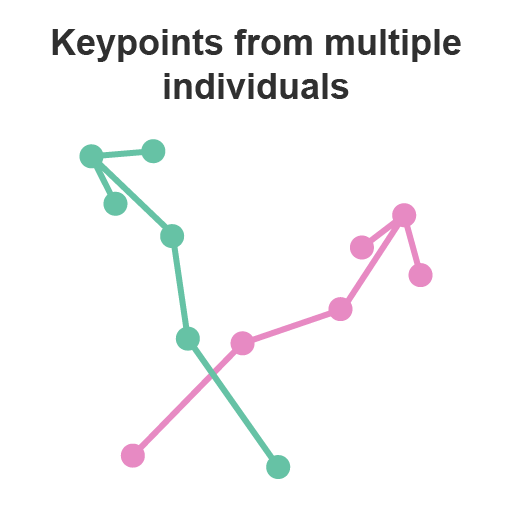

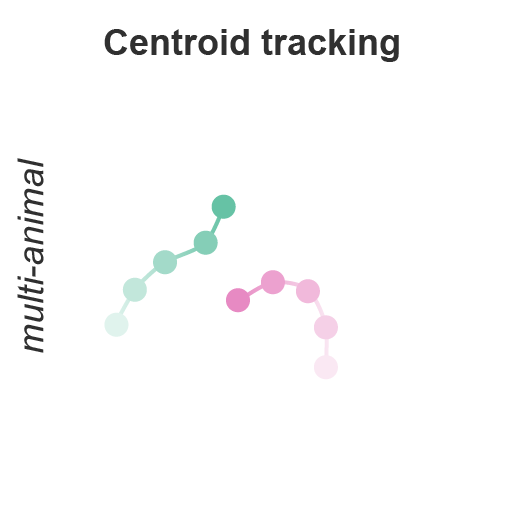

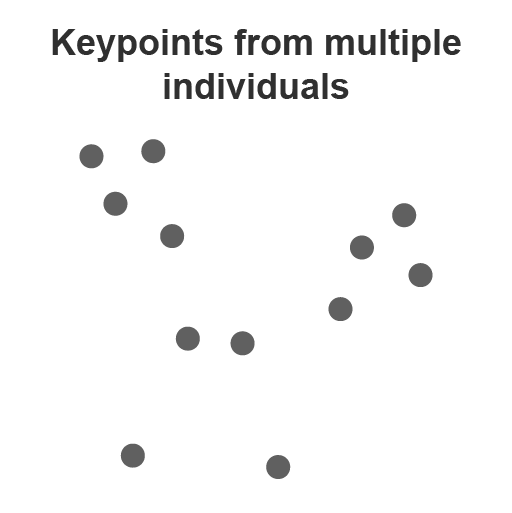

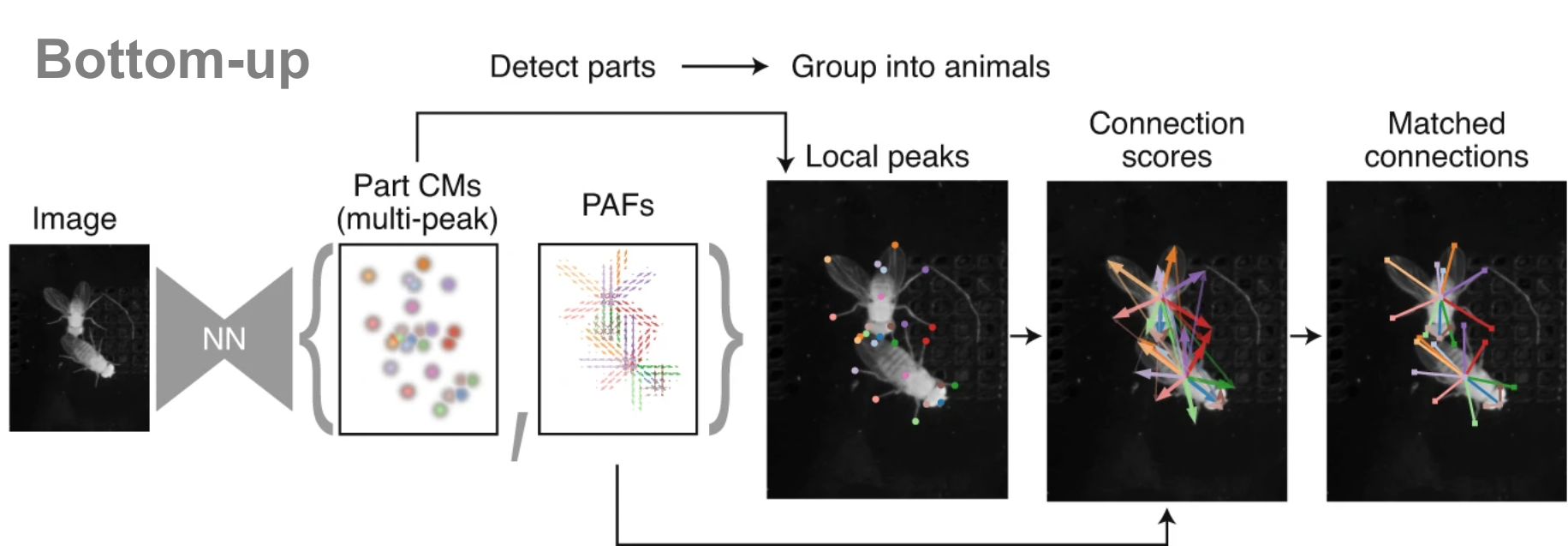

Multi-animal part grouping

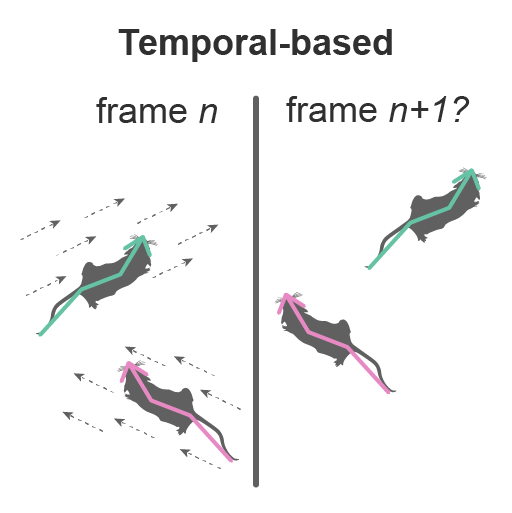

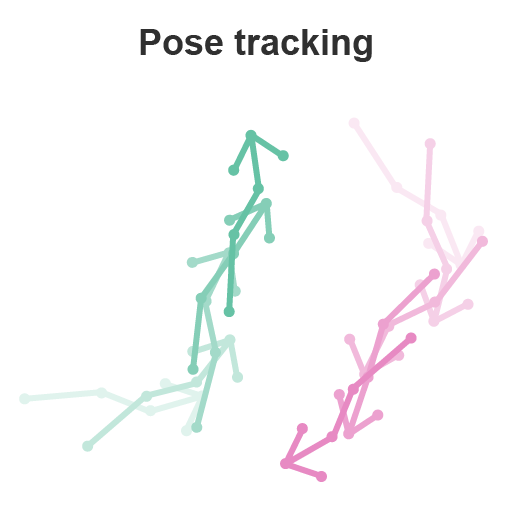

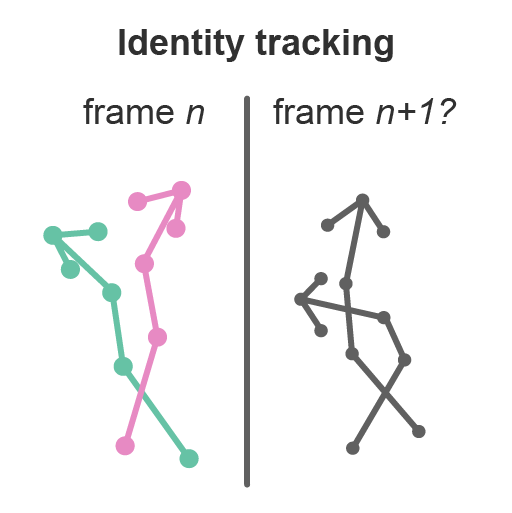

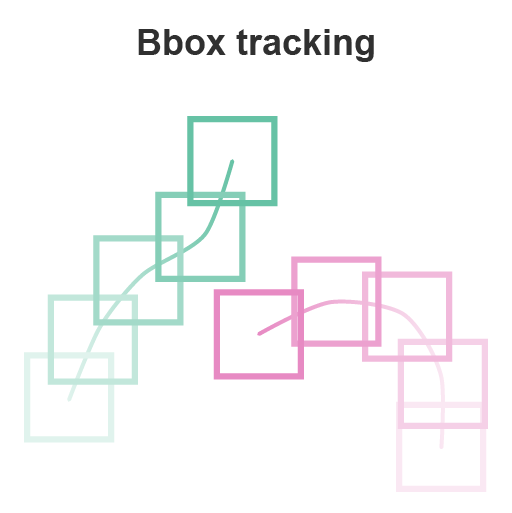

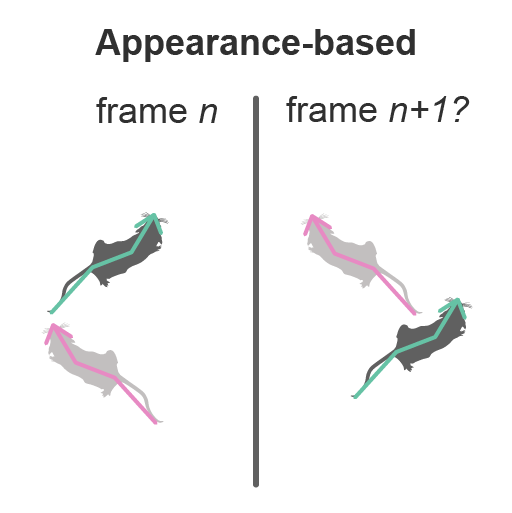

Multi-animal identity tracking

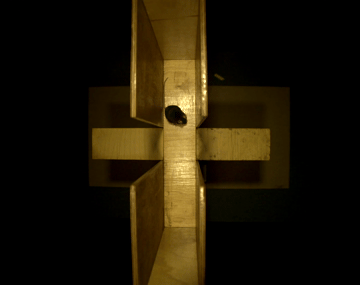

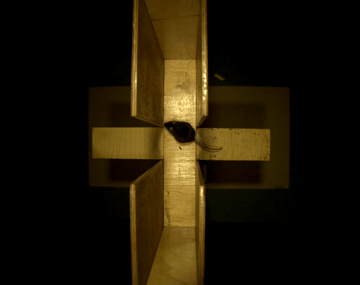

The Elevated Plus Maze
Structure: 2 open arms, 2 closed arms, central areaExploits rodents’ natural aversion to open spaces and height
Less anxious animals spend more time in open arms
Task : quantify time spent in open arms / closed arms
The dataset
$ cd behav-analysis-course
. ├── LICENSE├── README.md└── mouse-EPM├── derivatives└── rawdata
$ cd mouse-EPM/rawdata
. ├── sub-01_id-M708149│ └── ses-01_date-20200317│ └── behav│ └── sub-01_ses-01_task-EPM_time-165049_video.mp4└── sub-02_id-M708154└── ses-01_date-20200317└── behav└── sub-02_ses-01_task-EPM_time-185651_video.mp4

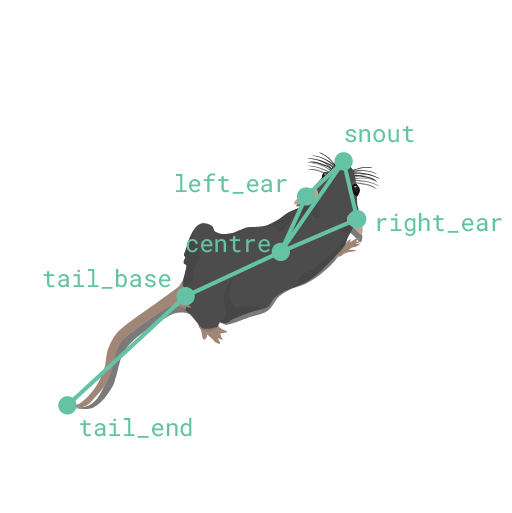

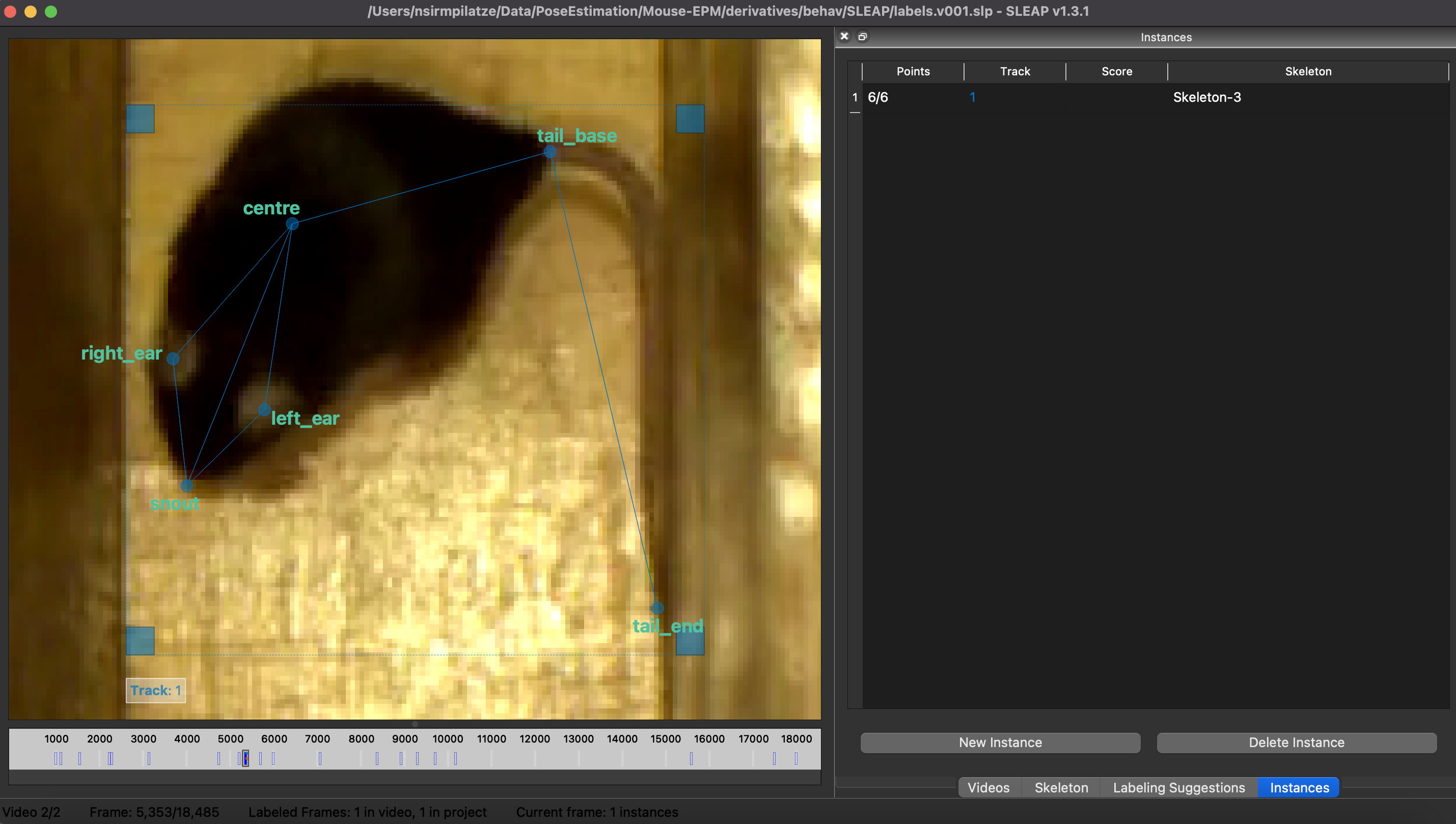

Define a skeleton
snout
left_ear
snout
right_ear
snout
centre
left_ear
centre
right_ear
centre
centre
tail_base
tail_base
tail_end
Save the project right after defining the skeleton!

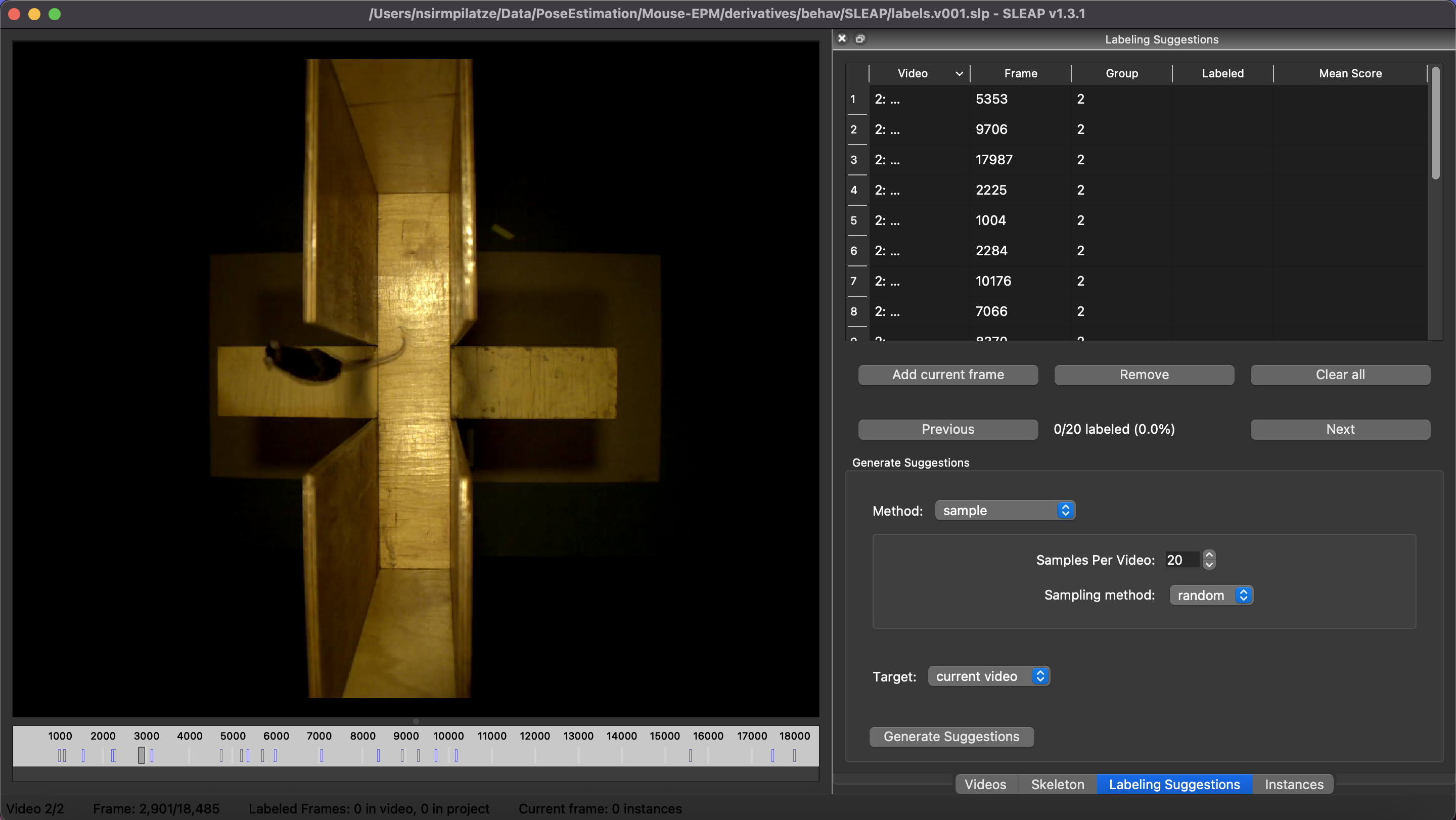

Generate labeling suggestions

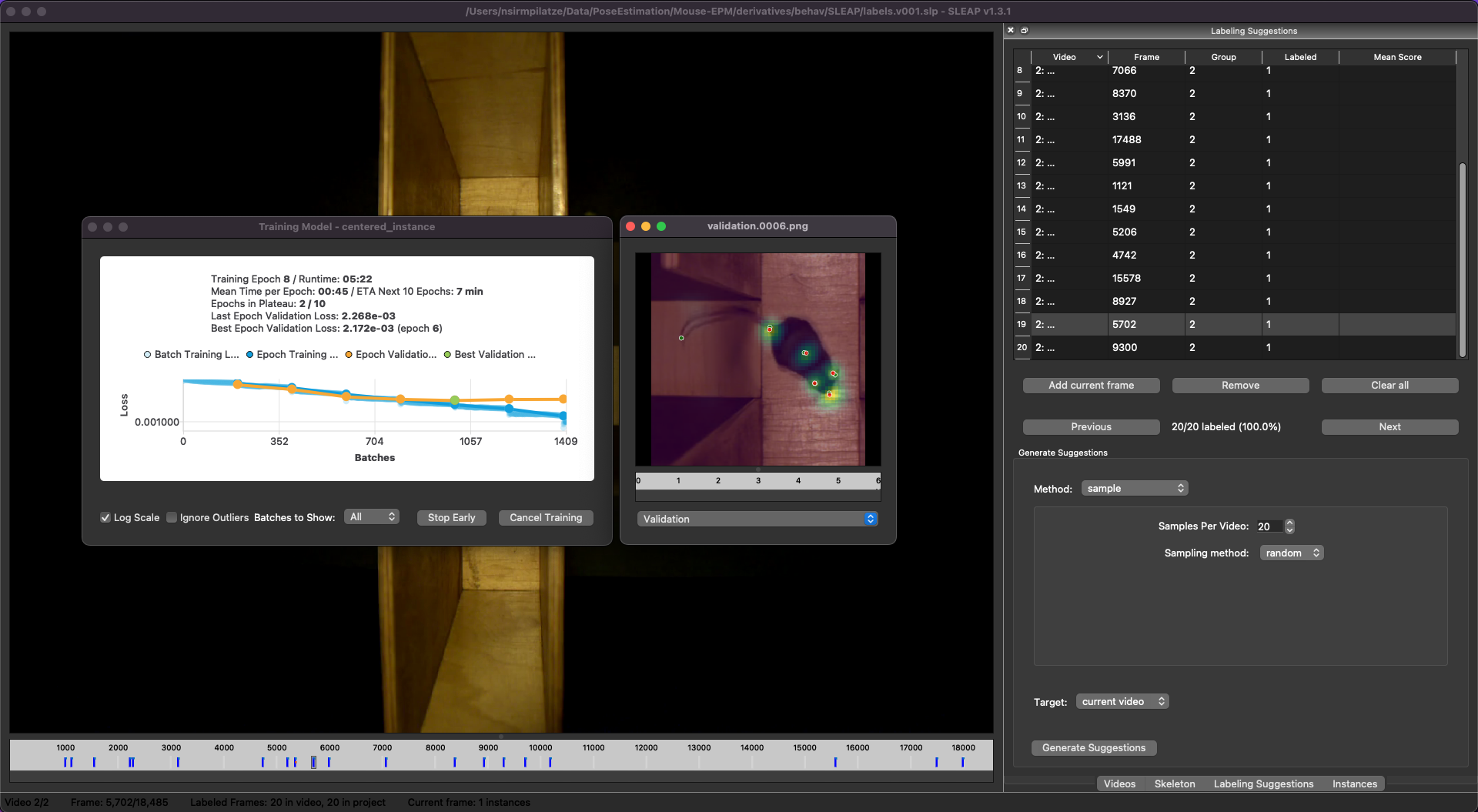

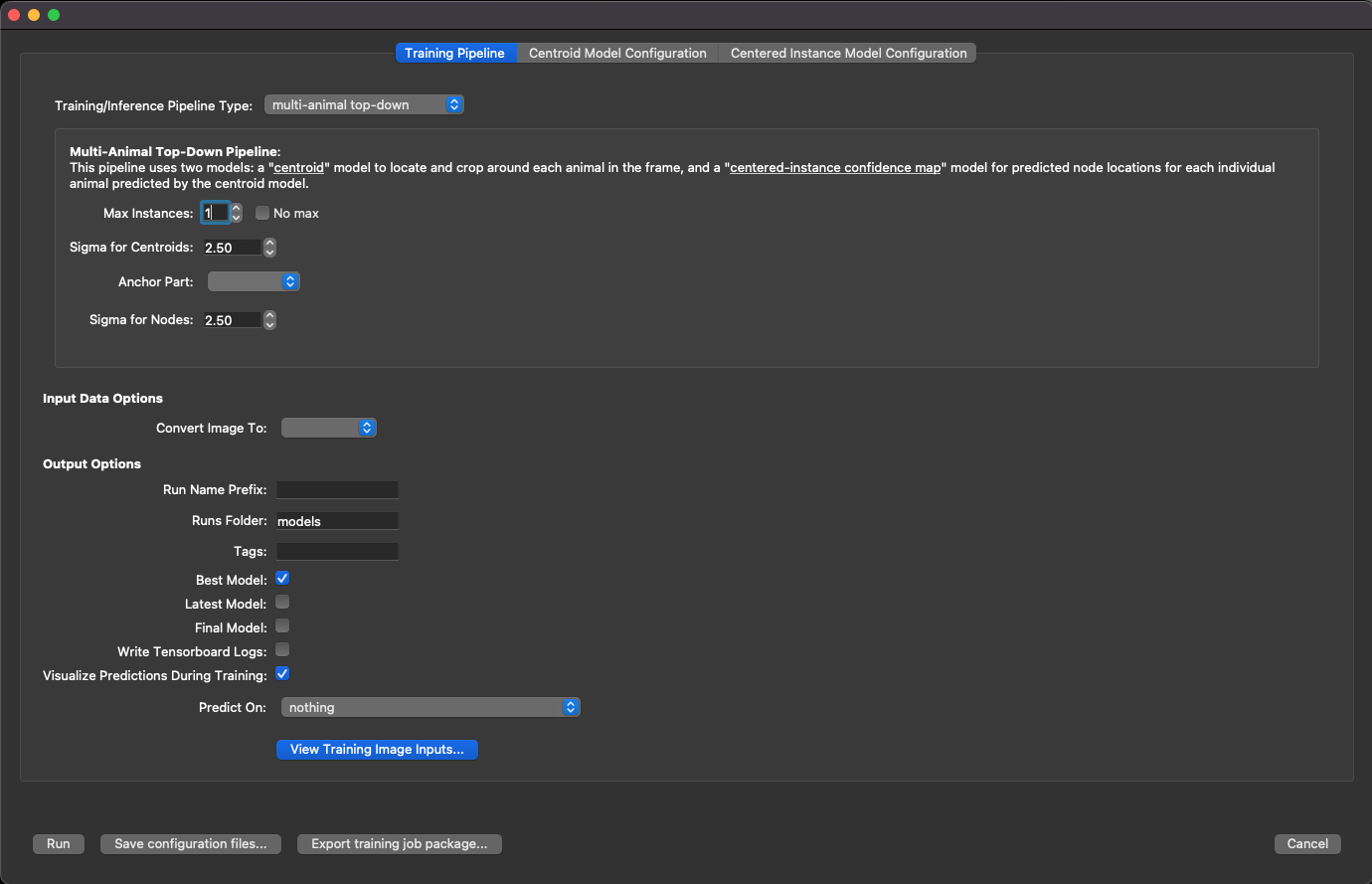

Monitor training progress

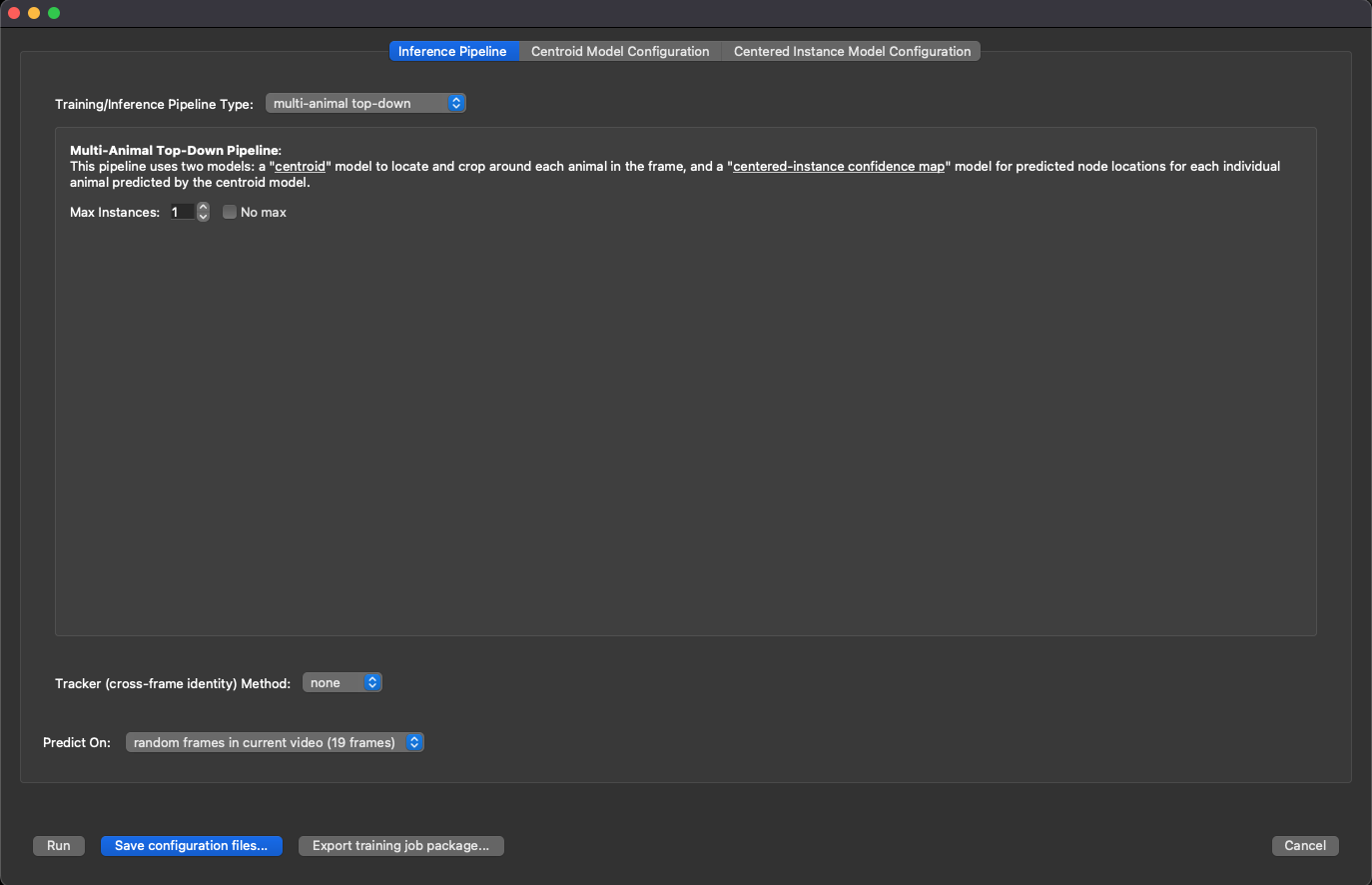

Run inference on new frames
Using SLEAP on the HPC cluster
Predictions in the sample dataset
$ cd behav-analysis-course/mouse-EPM
. └── derivatives└── behav├── software-DLC_predictions└── software-SLEAP_project└── predictions
Different pose estimation software produce predictions in different formats.
Different workflows are needed for importing predicted poses into Python for further analysis.
What happens after tracking?
flowchart TB
classDef emphasis fill:#03A062;
video -->|compression/re-encoding | video2["compressed video"]
video2 -->|pose estimation + tracking| tracks["pose tracks"]
tracks --> |calculations| kinematics
tracks -->|classifiers| actions["actions / behav syllables"]
video2 --> |comp vision| actions
linkStyle 2 stroke:#03A062, color:;
class tracks emphasis
class kinematics emphasis

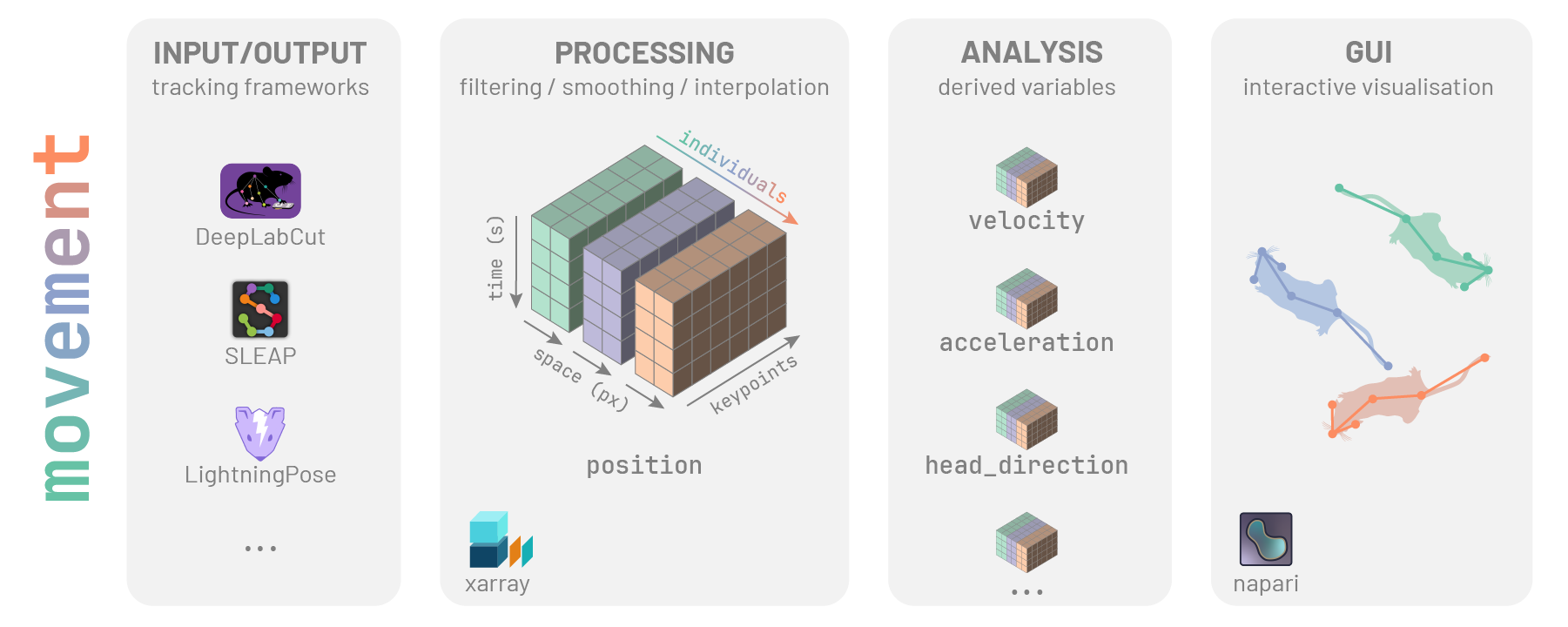

Enter movement
Python tools for analysing body movements across space and time.
movement featuresImplemented: I/O
✅ import pose tracks from DeepLabCut and SLEAP
✅ represent pose tracks in common data structure
⏳ export pose tracks in various formats
In progress / planned:
⏳ Interactive visualisations: plot pose tracks, ROIs, etc.
🤔 Data cleaning: drop bad values, interpolate, smooth, resample etc.
🤔 Derive kinematic variables: velocity, acceleration, orientation, etc.
🤔 Integrate spatial information about the environment (e.g. ROIs, arena)

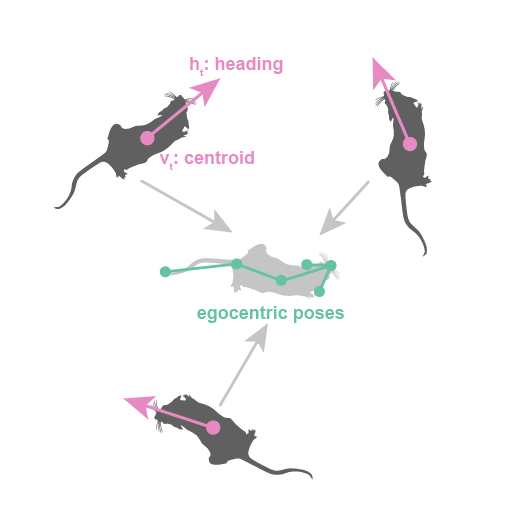

🤔 Coordinate transformations (e.g. egocentric)

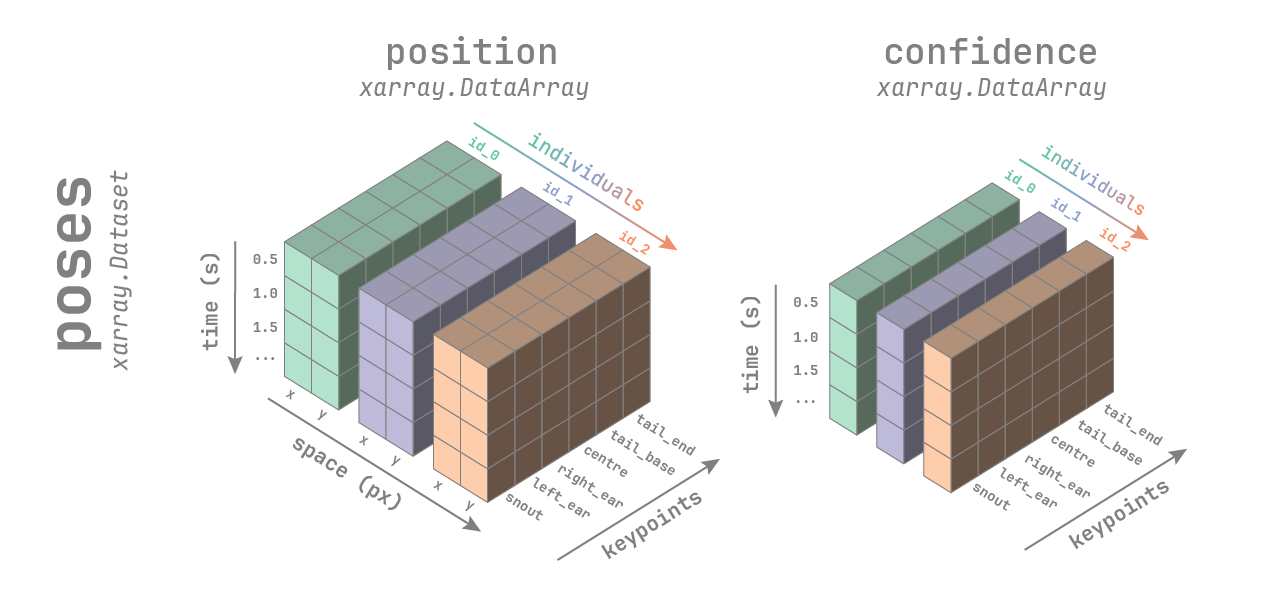

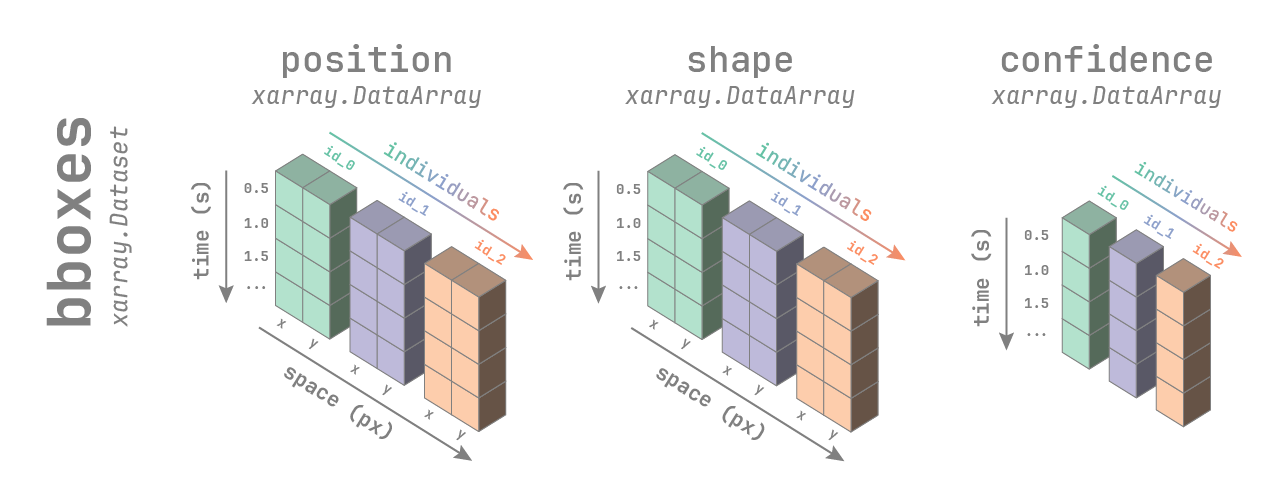

The movement data structure
Time to play 🛝
In a terminal, clone the course repository and go to the notebooks directory:
git clone https://github.com/neuroinformatics-unit/course-behavioural-analysis.gitcd course-behavioural-analysis/notebooks
Create a new conda environment and install required packages:
conda create -n epm-analysis -c conda-forge python=3.10 pytablesconda activate epm-analysispip install -r notebook_requirements.txt
Once all requirements are installed, you can:
open the EPM_analysis.ipynb notebook
select the environment epm-analysis as the kernel
We will go through the notebook step-by-step, together.

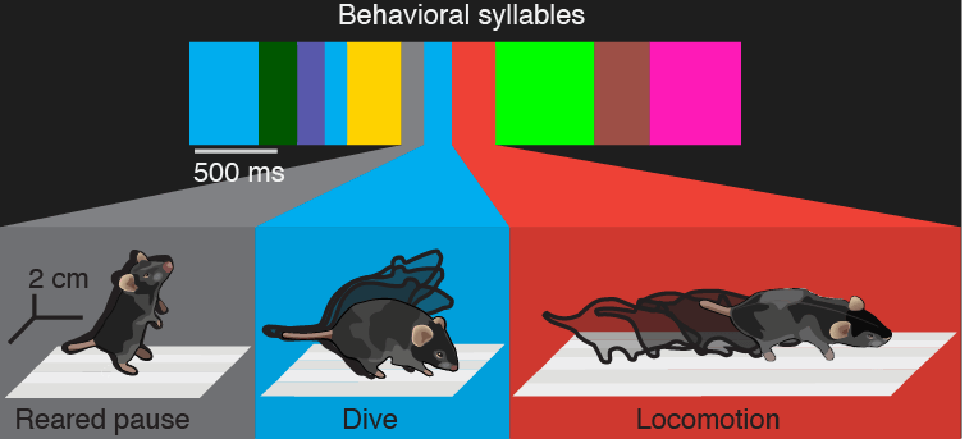

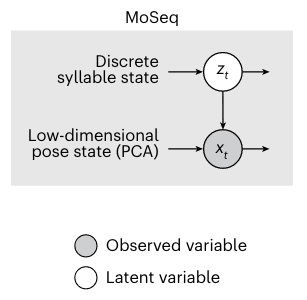

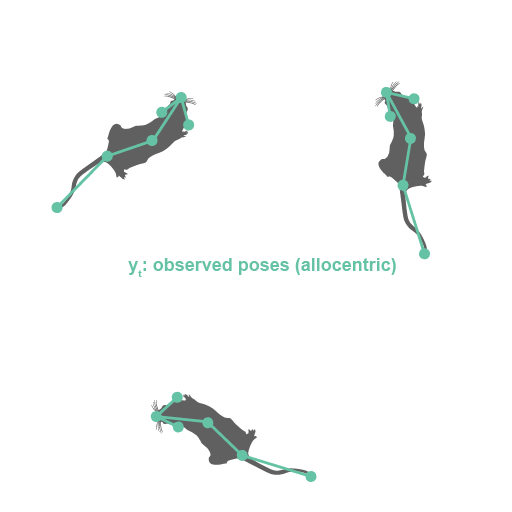

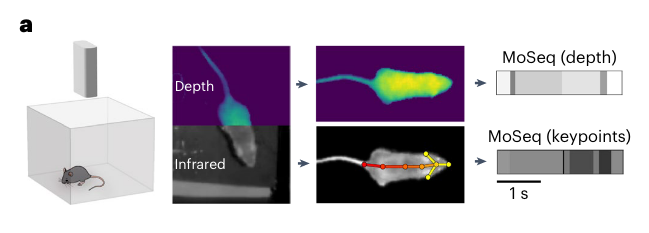

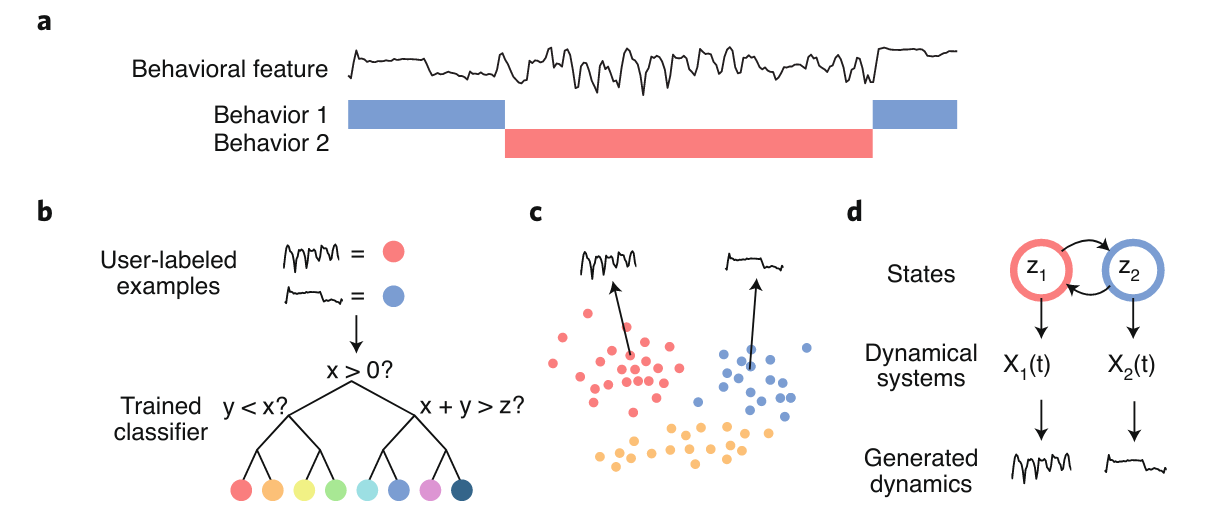

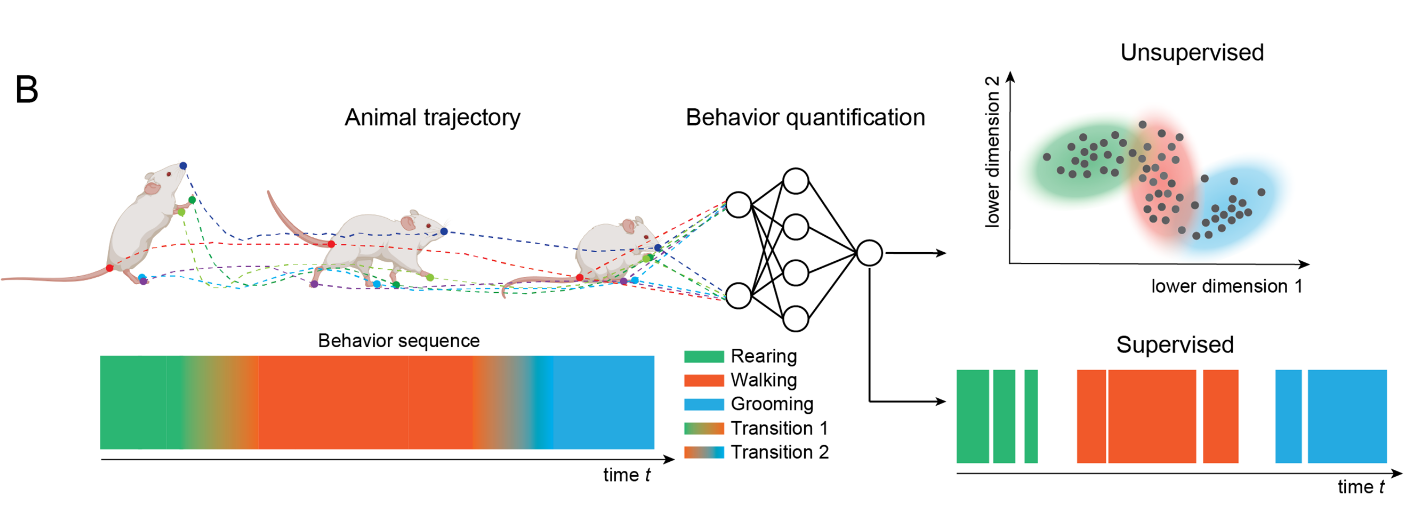

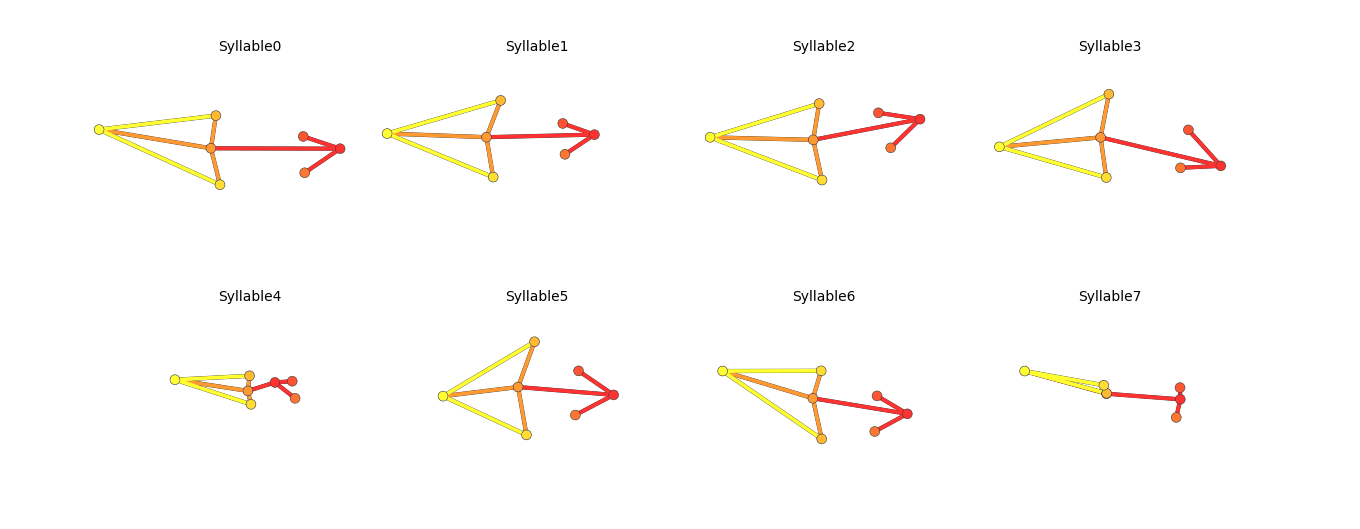

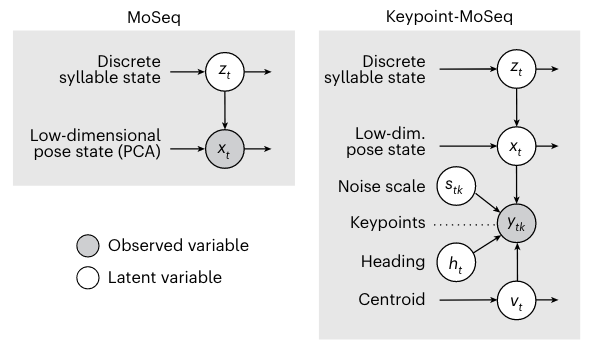

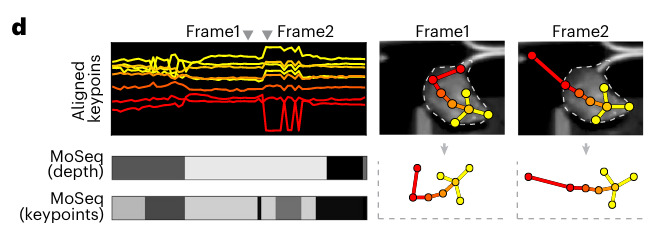

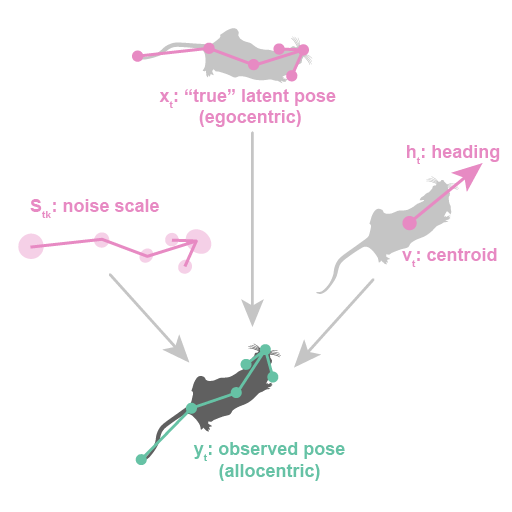

From behaviour to actions
flowchart TB
classDef emphasis fill:#03A062;
video -->|compression/re-encoding | video2["compressed video"]
video2 -->|pose estimation + tracking| tracks["pose tracks"]
tracks --> |calculations| kinematics
tracks -->|classifiers| actions["actions / behav syllables"]
video2 --> |comp vision| actions
linkStyle 3 stroke:#03A062, color:;
linkStyle 4 stroke:#03A062, color:;
class tracks emphasis
class video2 emphasis
class actions emphasis
Feedback
Tell us what you think about this course!
Write on IdeaBoardz or talk to us anytime.
Join the movement!
Niko Sirmpilatze
Chang Huan Lo
Alessandro Felder
